Circuit Diagram: (M/T)

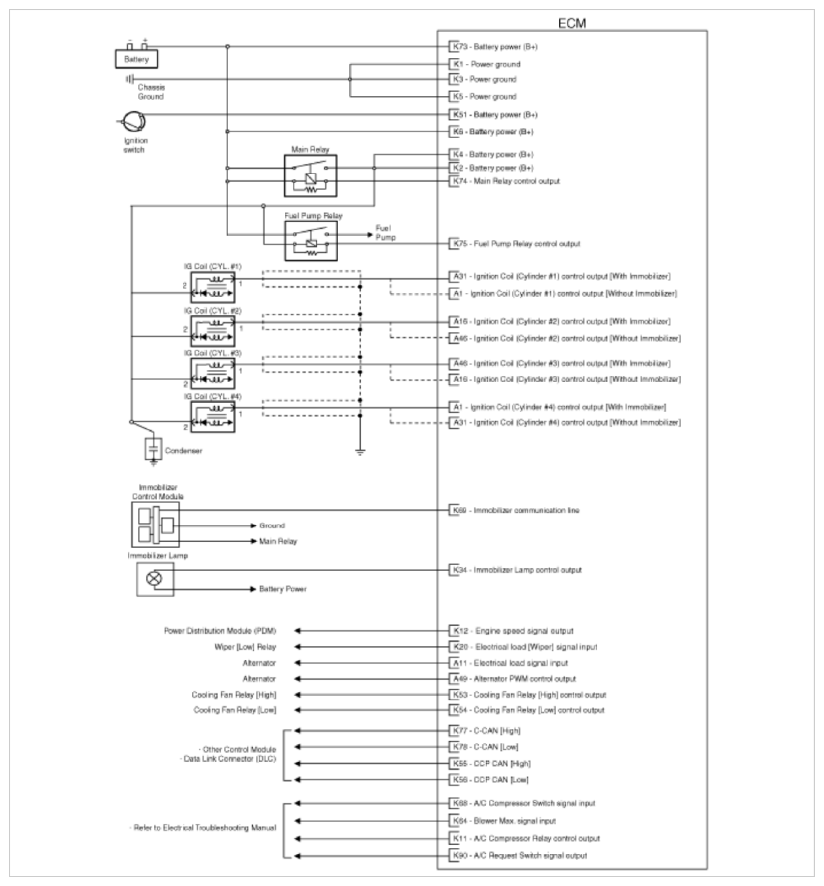

Fig 1: Engine Control Module (ECM) - Circuit Diagram - (M/T) (1 Of 4)
G09748712Courtesy of KIA MOTORS AMERICA, INC.

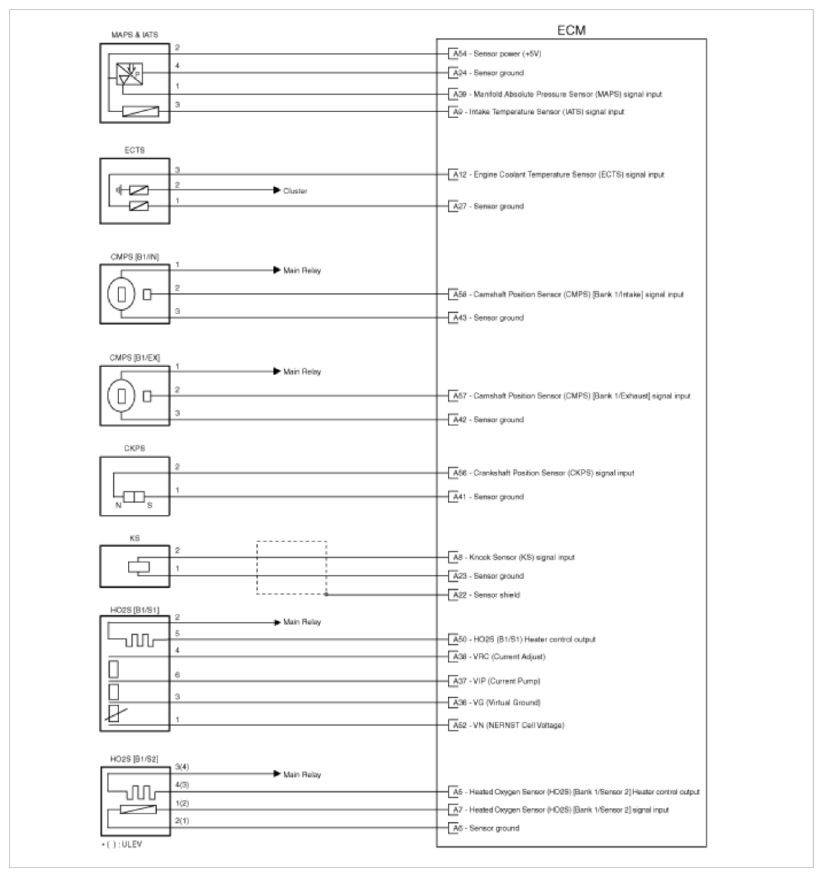

Fig 2: Engine Control Module (ECM) - Circuit Diagram - (M/T) (2 Of 4)
G09748713Courtesy of KIA MOTORS AMERICA, INC.

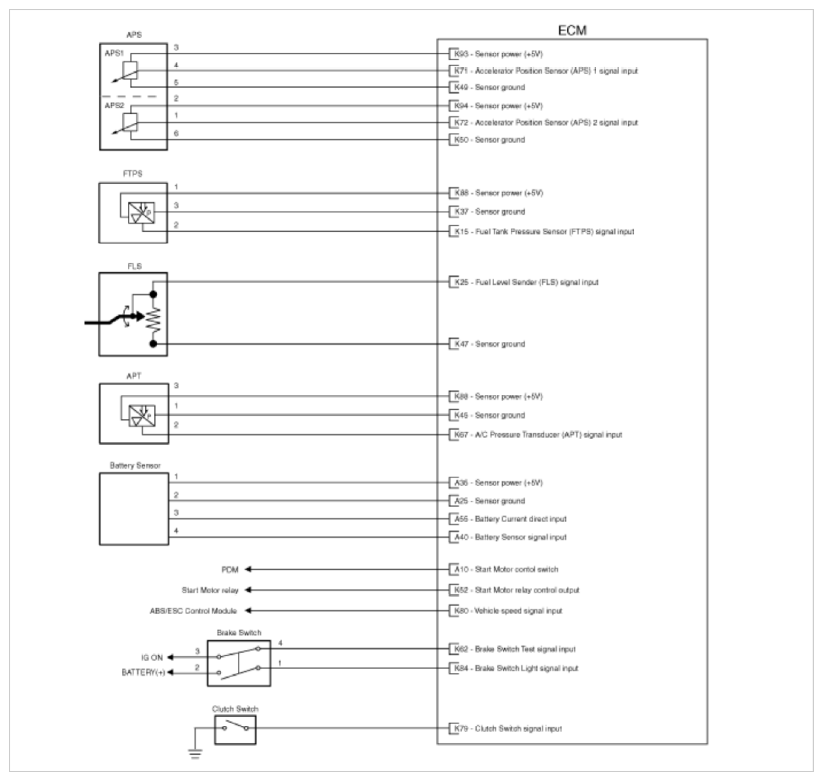

Fig 3: Engine Control Module (ECM) - Circuit Diagram - (M/T) (3 Of 4)
G09748714Courtesy of KIA MOTORS AMERICA, INC.

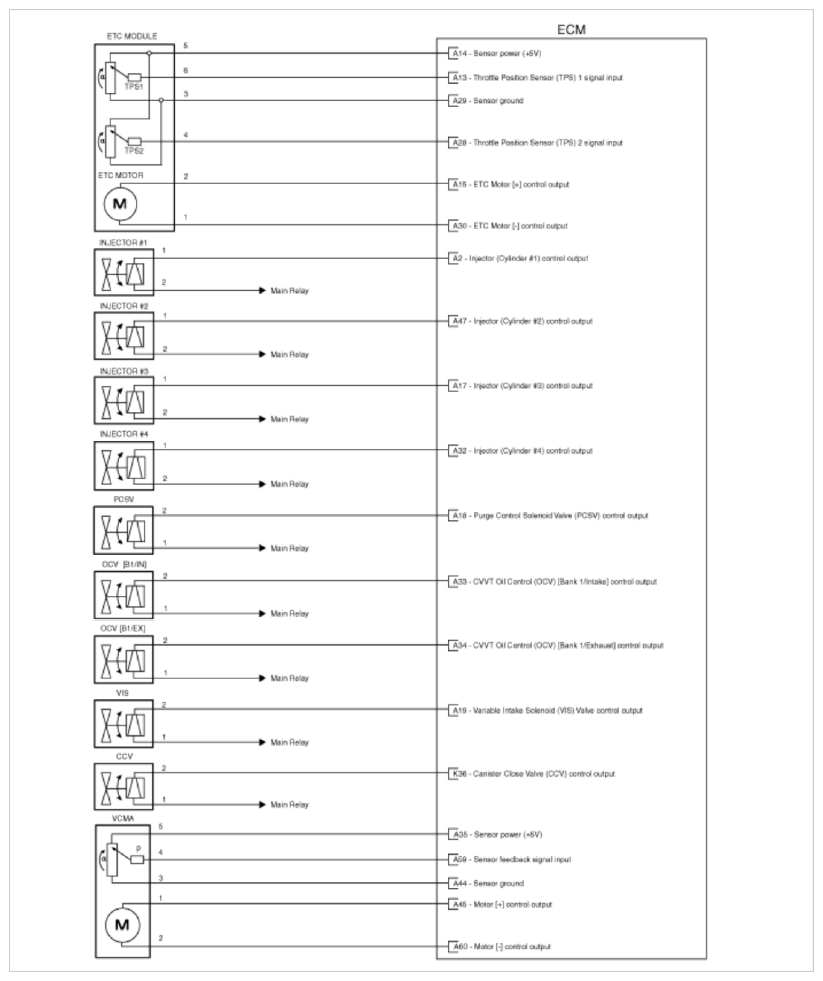

Fig 4: Engine Control Module (ECM) - Circuit Diagram - (M/T) (4 Of 4)
G09748715Courtesy of KIA MOTORS AMERICA, INC.
