Repair Procedures: Removal

Disconnect the negative (-) battery cable.
Remove the air cleaner assembly and air duct.
(Refer to "AIR CLEANER ")

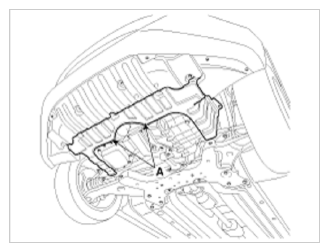

Remove the under cover (A).
Tightening Torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 1: Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug.
(Refer to "FLUID ")

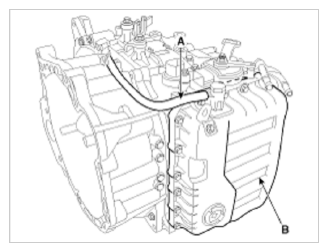

Remove the air breather hose (A).
Remove the valve body cover (B).
Tightening Torque:

11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)

NOTE: Remove installation bolts in the engine compartment first and then remove others under the vehicle.

Fig 2: Valve Body Cover & Air Breather Hose
Courtesy of KIA MOTORS AMERICA, INC.

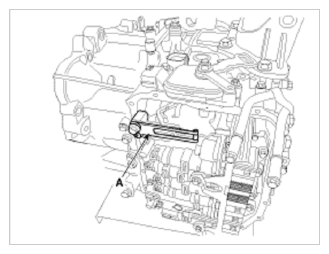

Remove the plate and the detent spring (A) after removing the bolt.
Tightening Torque:

11.8 ~ 15.7 N.m (1.2 ~ 1.6 kgf.m, 8.7 ~ 11.6 lb-ft)

Fig 3: Removing Detent Spring & Plate
Courtesy of KIA MOTORS AMERICA, INC.

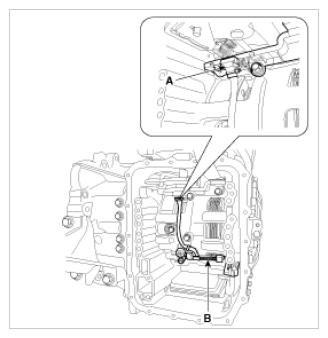

Remove the bolt (3ea) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening Torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

CAUTION: Be careful not to damage the harness lock connector.

Fig 4: Solenoid Valve Connector & Oil Temperature Sensor
Courtesy of KIA MOTORS AMERICA, INC.

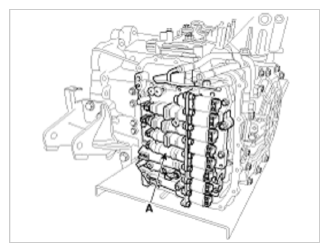

Remove the valve body assembly (A).
Tightening Torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 5: Valve Body Assembly
Courtesy of KIA MOTORS AMERICA, INC.

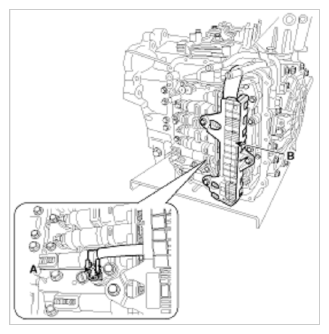

Disconnect the input & output speed sensor connector (A).
Remove the input & output speed sensor (B) after removing the bolts (2ea).
Tightening Torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 6: Input & Output Speed Sensor & Connector
Courtesy of KIA MOTORS AMERICA, INC.
