Repair Procedures: Removal

Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ")
Remove the air duct.

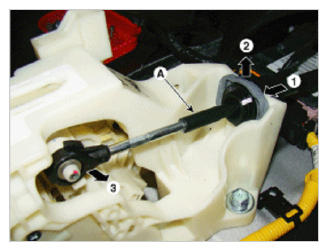

Disconnect the control cable (A).

Fig 1: Disconnecting Control Cable
Courtesy of KIA MOTORS AMERICA, INC.

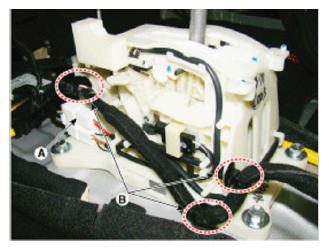

Disconnect the connector (A).
Disconnect the wire mounting clips (B).

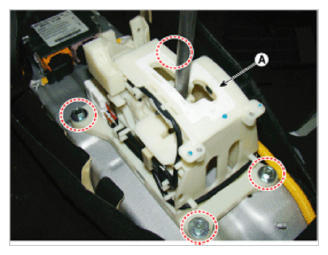

Remove the bolts and then shift lever assembly (A).
Tightening Torque:

8.8 ~ 13.7N.m (0.9 ~ 1.4kgf.m, 6.5 ~ 10.1lb-ft)

Fig 2: Shift Lever Assembly & Fasteners (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Shift Lever Assembly & Fasteners (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
