Repair Procedures: Removal

Information

The oil temperature sensor is integrated with the solenoid valve main connector and can not be disassembled. The oil temperature sensor should be replaced with the solenoid valve main connector.

1. Move the shift lever to "N" range.
2. Remove the valve body assembly.

   (Refer to "VALVE BODY ")

3. Disconnect the input & output speed sensor connector (A).
4. Loosen the solenoid valve harness bolts (B).

   Tightening Torque:

   9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

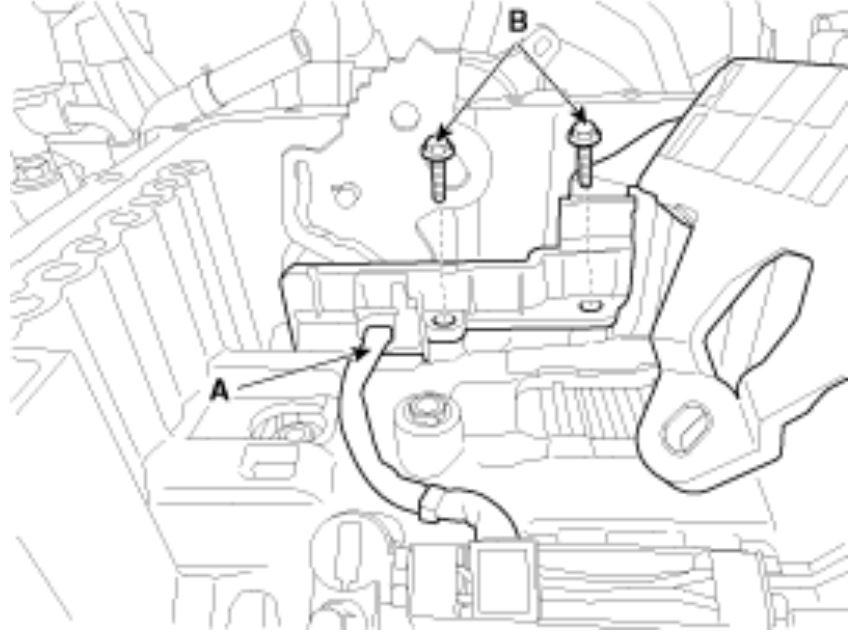

   Fig 1: Solenoid Valve Harness Bolts & Output Speed Sensor Connector

   Courtesy of KIA MOTORS AMERICA, INC.
5. Disconnect the solenoid valve connector (A).

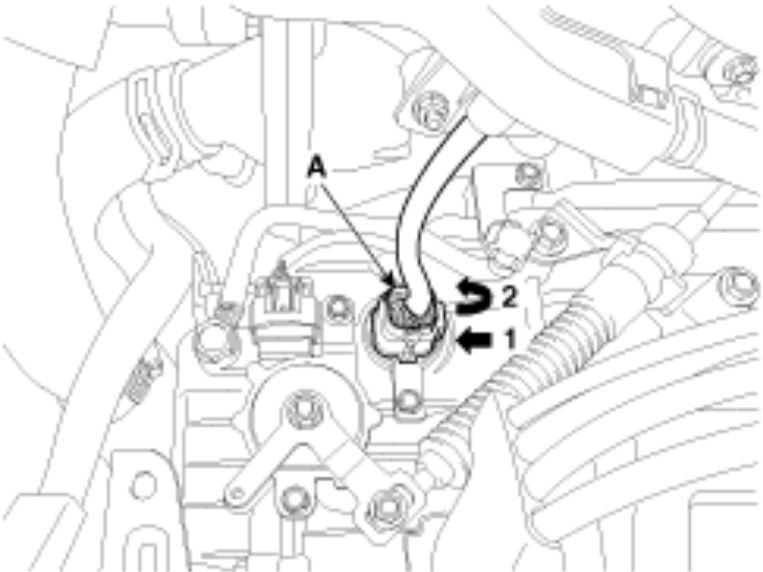

   Fig 2: Solenoid Valve Connector

   Courtesy of KIA MOTORS AMERICA, INC.
6. Remove the clip (A) and then remove the connector by pressing it downward.

   Tightening Torque:

   9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

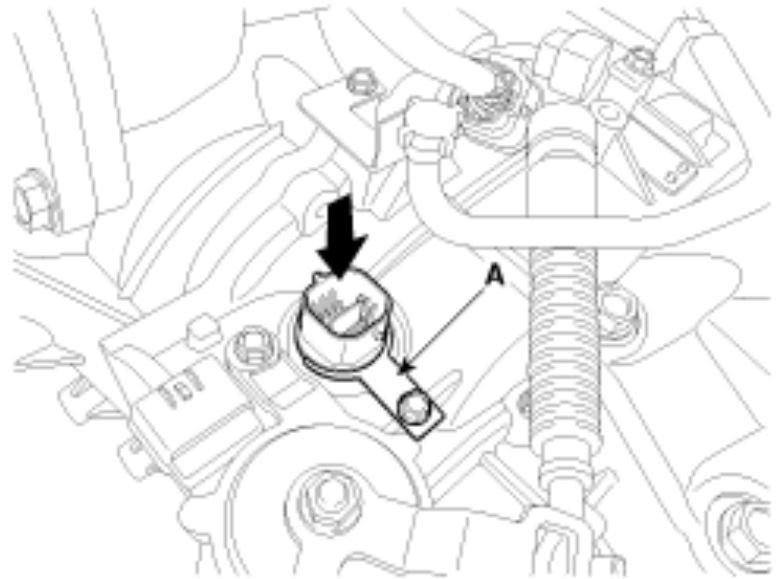

   Fig 3: Removing Clip And Connector

   Courtesy of KIA MOTORS AMERICA, INC.
