Passenger Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim panel.
(Refer to "FRONT DOOR TRIM ")
Disconnect the connector from the switch.

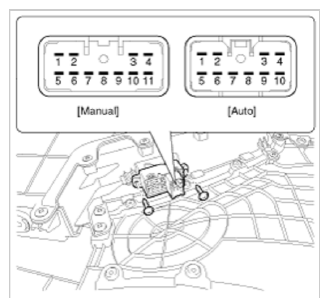

Fig 1: Passenger Power Window Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
[Auto]

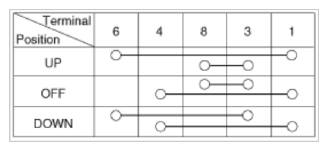

Fig 2: Checking Continuity Between Terminals (Auto)
Courtesy of KIA MOTORS AMERICA, INC.

[Manual]

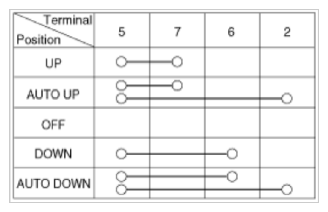

Fig 3: Checking Continuity Between Terminals (Manual)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the power window switch (A) after loosening the screws.

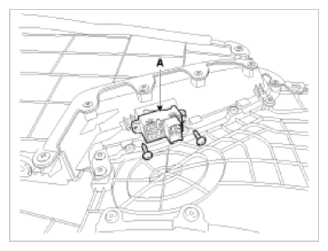

Fig 4: Passenger Power Window Switch
Courtesy of KIA MOTORS AMERICA, INC.
