Circuit Diagram: (M/T)

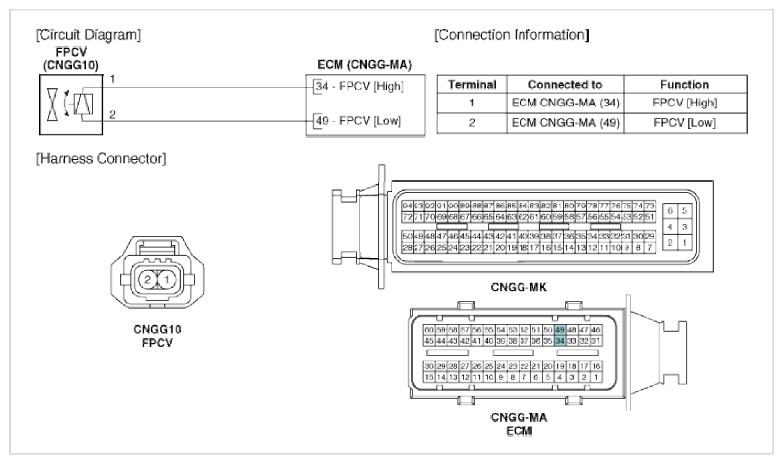

Fig 1: Fuel Pressure Control Valve (FPCV) - Circuit Diagram (M/T)
Courtesy of KIA MOTORS AMERICA, INC.
