Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the resonator and the air intake hose.
(Refer to "AIR CLEANER ")
Disconnect the ETC module connector (A).

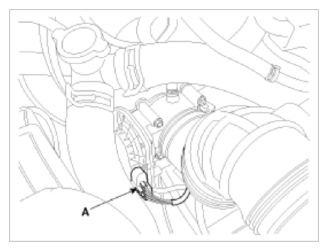

Fig 1: ETC Module Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the water hoses (A).

Fig 2: Water Hoses
Courtesy of KIA MOTORS AMERICA, INC.
Remove the installation bolts, and then remove the ETC module (A) from the engine.

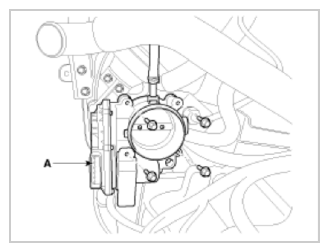

Fig 3: Removing ETC Module
Courtesy of KIA MOTORS AMERICA, INC.
