Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the manifold absolute pressure sensor connector (A).
  3. Remove the sensor from the surge tank by loosening the mounting bolts (B).

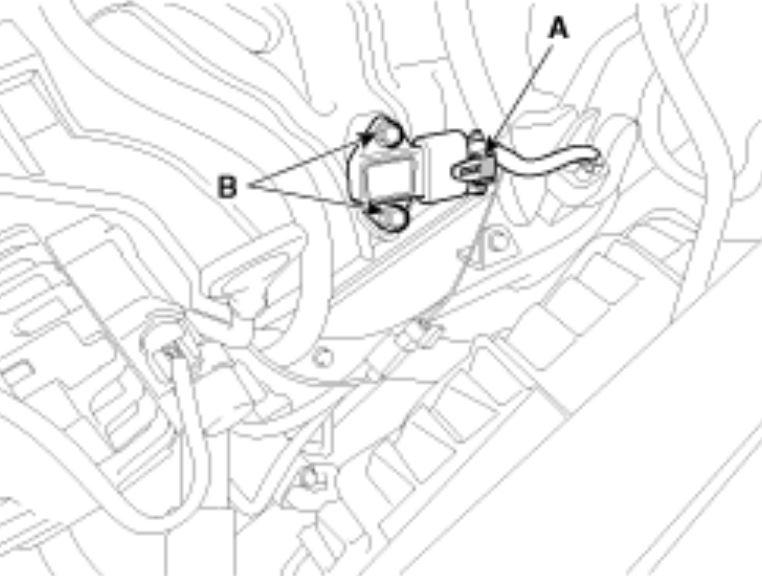

    4. Fig 1: Manifold Absolute Pressure Sensor Connector And Bolts
    G00569897Courtesy of KIA MOTORS AMERICA, INC.
