Repair Procedures: Inspection

  1. Measure the primary coil resistance between terminals (+) and (-).

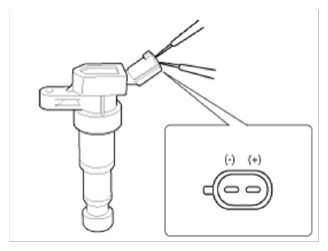

    Fig 1: Measuring Primary Coil Resistance
    G09746826Courtesy of KIA MOTORS AMERICA, INC.

    Standard Value:  0.79Ω ± 15% [20°C (68°F)]
