Repair Procedures: Removal

Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ")

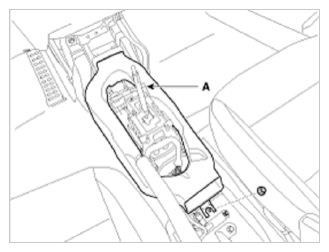

Remove the rear heating joint duct (A).

Fig 1: Removing Rear Heating Joint Duct
Courtesy of KIA MOTORS AMERICA, INC.

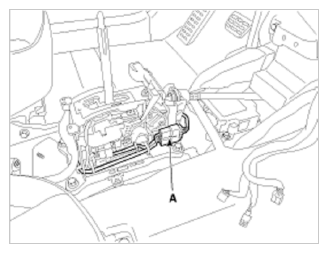

Disconnect the connector (A).

Fig 2: Rear Heating Connector
Courtesy of KIA MOTORS AMERICA, INC.

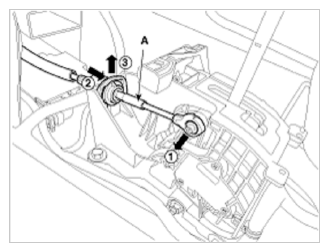

Disconnect the shift cable (A).

Fig 3: Disconnecting Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

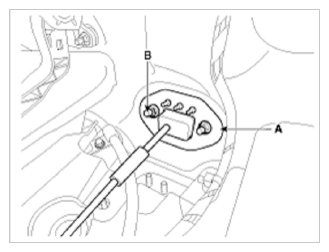

Remove the shift cable retainer (A) by loosening the nut (B).
Tightening Torque:

11.8 ~ 14.7 N.m (1.2 ~1.5 kgf.m, 8.7 ~ 10.8 lb-ft)

Fig 4: Shift Cable Retainer And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to "BATTERY ")
Remove the shift cable.

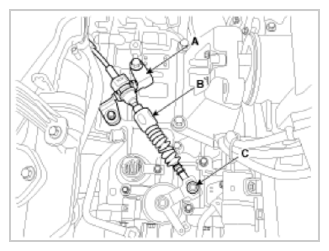

1. Loosen the nut (C)
  Tightening Torque:

  9.8 ~ 13.7 N.m (1.0 ~1.4 kgf.m, 7.2 ~ 10.8 lb-ft)
2. Remove the shift cable (B) from the bracket (A).

  Fig 5: Shift Cable Bracket & Bracket
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable by pulling it toward the interior.
