Repair Procedures: Removal

Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ")

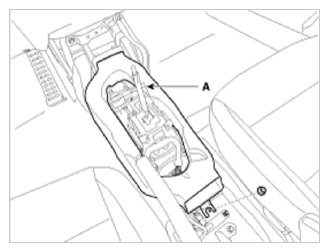

Remove the rear heating joint duct (A).

Fig 1: Removing Rear Heating Joint Duct
Courtesy of KIA MOTORS AMERICA, INC.

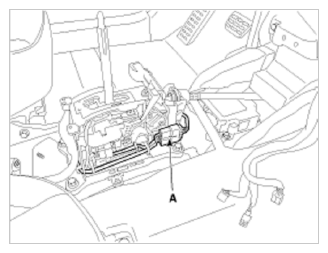

Disconnect the connector (A).

Fig 2: Rear Heating Connector
Courtesy of KIA MOTORS AMERICA, INC.

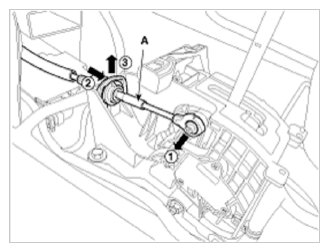

Disconnect the shift cable (A).

Fig 3: Disconnecting Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

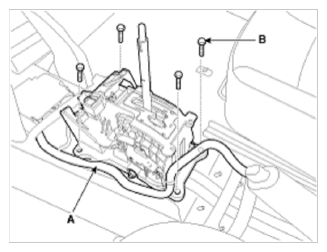

Remove the Shift lever assembly.
1. Disconnect the wiring (A) from the shift lever assembly.
2. Loosen the mounting bolts (B).
  Tightening Torque:

  (B) 8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

  Fig 4: Shift Lever Assembly Mounting Bolts
  Courtesy of KIA MOTORS AMERICA, INC.
