Transmission Control Systems
>>
Automatic Transaxle Control System - 1.6L
>>
Transaxle Control Module (TCM)
>>
Schematic Diagrams
>>
1. TCM Connector And Terminal Function
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
1. TCM Connector And Terminal Function

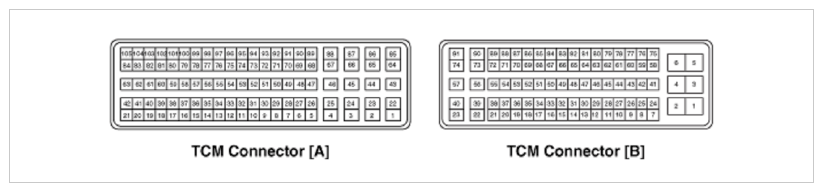

Fig 1: TCM Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
