Repair Procedures: Removal

Remove the valve body assembly.
(Refer to "VALVE BODY ")
Disconnect the input & output speed sensor connector (A).
Loosen the main connector bolt (B).
Tightening Torque:

(B) 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

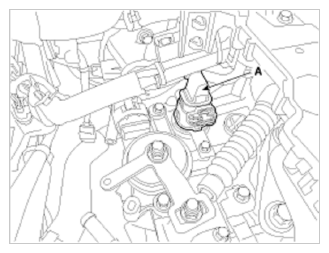

Fig 1: Input And Output Speed Sensor Connector & Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the solenoid valve connector (A).

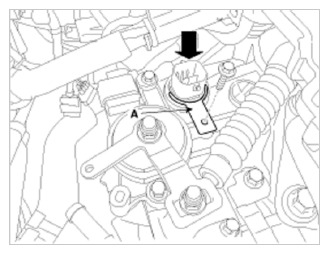

Fig 2: Solenoid Valve Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the solenoid valve connector after removing a clip (A).
Tightening Torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

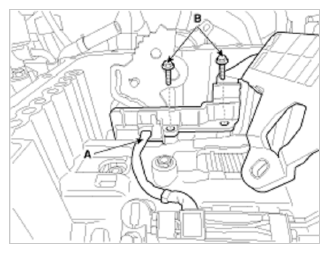

Fig 3: Removing Solenoid Valve Connector
Courtesy of KIA MOTORS AMERICA, INC.
