Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  4. Remove the PCSV (D) by loosening the mounting bolt (C).

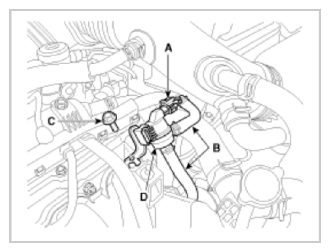

    Fig 1: Purge Control Solenoid Valve Connector And Vapor Hoses
    G09750249Courtesy of KIA MOTORS AMERICA, INC.
