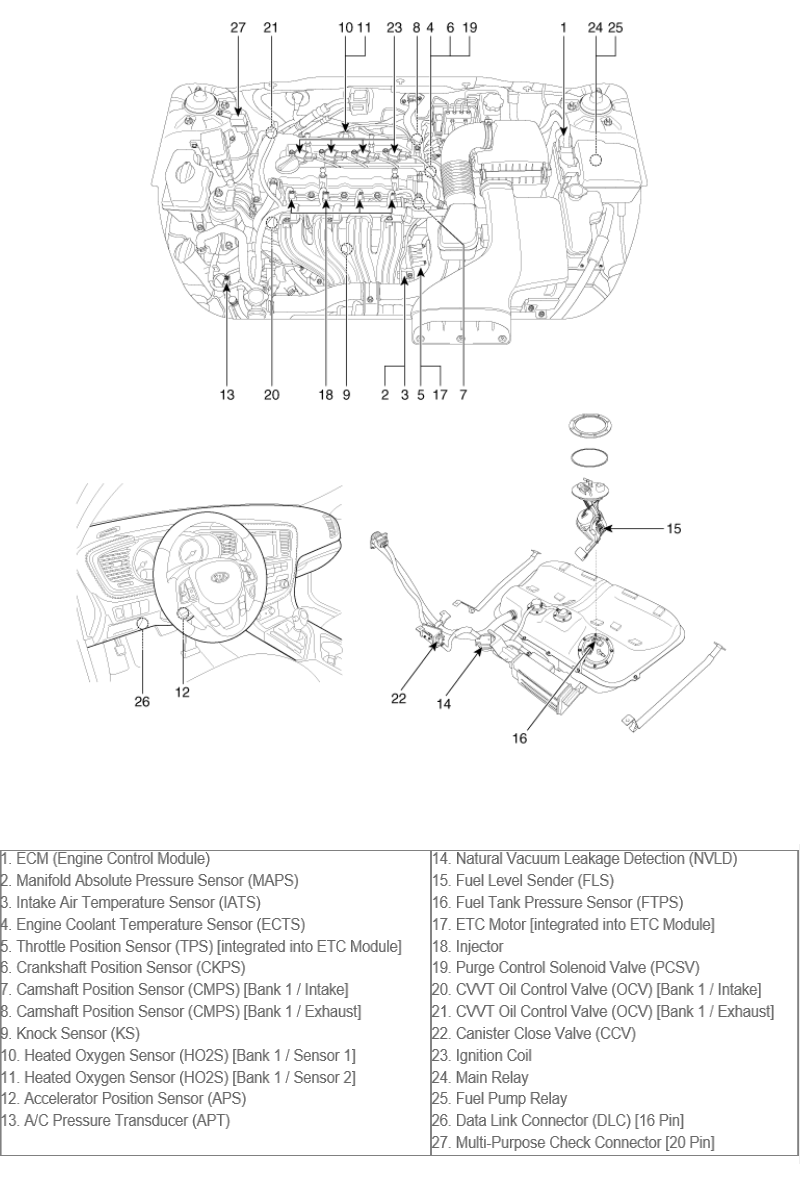

- 1. ECM (Engine Control Module)
|
- 2. Manifold Absolute Pressure Sensor (MAPS)
- 3. Intake Air Temperature Sensor (IATS)
|
|
|
|
- 4. Engine Coolant Temperature Sensor (ECTS)
|
- 5. Throttle Position Sensor (TPS)
- 17. ETC Motor
|
|
|
|
- 6. Crankshaft Position Sensor (CKPS)
|
- 7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
|
|
|
|
- 8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
|
- 9. Knock Sensor (KS)
|
|
|
|
- 10. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
|
- 11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
|
|
|
|
- 12. Accelerator Position Sensor (APS)
|
- 13. A/C Pressure Transducer (APT)
|
|
|
|
- 14. Natural Vacuum Leakage Detection (NVLD)
|
- 15. Fuel Level Sender (FLS)
- 16. Fuel Tank Pressure Sensor (FTPS)
|
|
|
|
- 18. Injector
- 23. Ignition Coil
|
- 19. Purge Control Solenoid Valve (PCSV)
|
|
|
|
- 20. CVVT Oil Control Valve (OCV) [Bank 1 /Intake]
|
- 21. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
|
|
|
|
- 22. Canister Close Valve (CCV)
|
- 24. Main Relay
- 25. Fuel Pump Relay
|
|
|
|
- 26. Data Link Connector (DLC) [16 pin]
|
- 27. Multi-Purpose Check Connector [20 pin]
|
|
|
|
