Circuit Diagram

Fig 1: ECM - Circuit Diagram (1 Of 4)
G00548712Courtesy of KIA MOTORS AMERICA, INC.

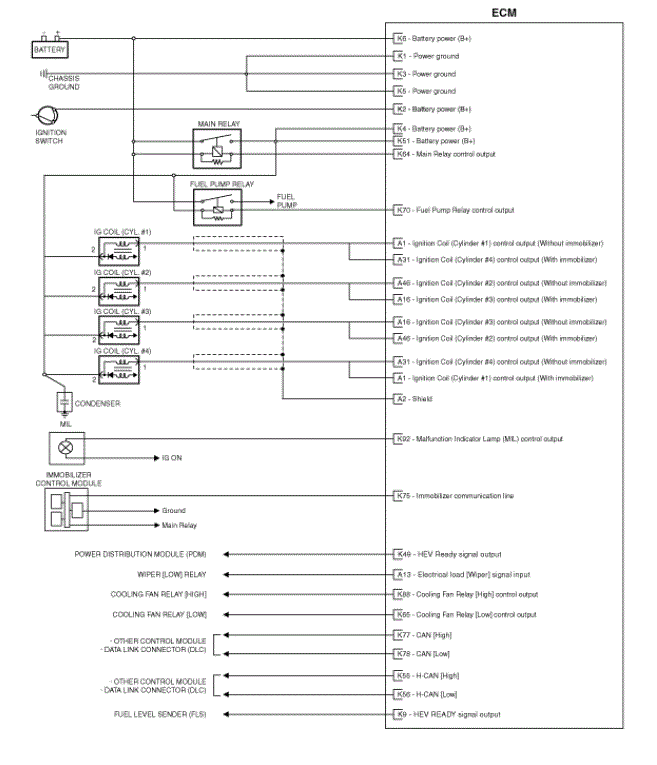

Fig 2: ECM - Circuit Diagram (2 Of 4)
G00548713Courtesy of KIA MOTORS AMERICA, INC.

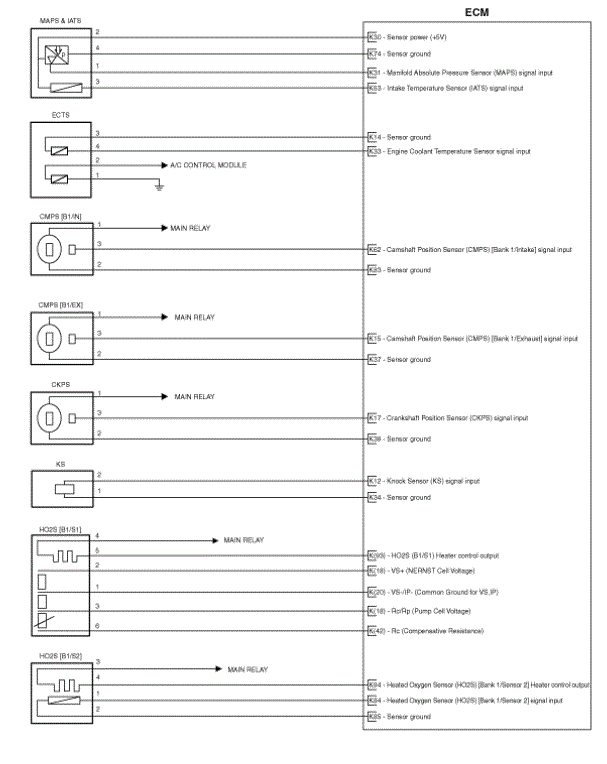

Fig 3: ECM - Circuit Diagram (3 Of 4)
G00548714Courtesy of KIA MOTORS AMERICA, INC.

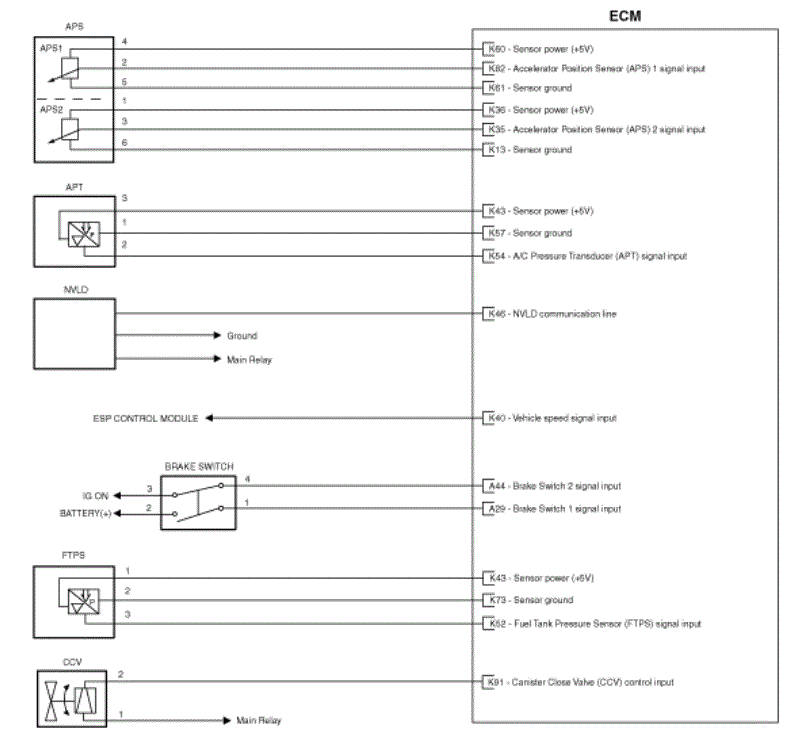

Fig 4: ECM - Circuit Diagram (4 Of 4)
G08312828Courtesy of KIA MOTORS AMERICA, INC.
