Components Location

(Type 1 for TF)

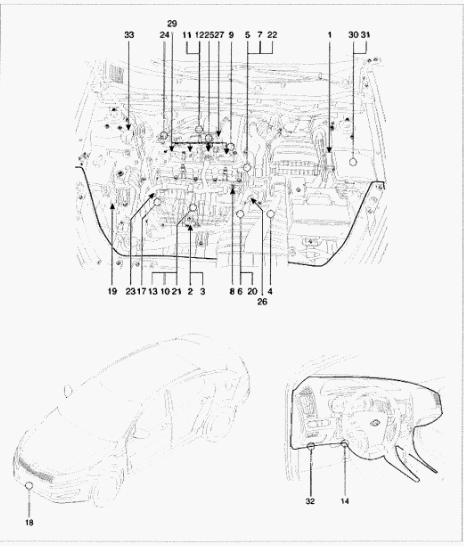

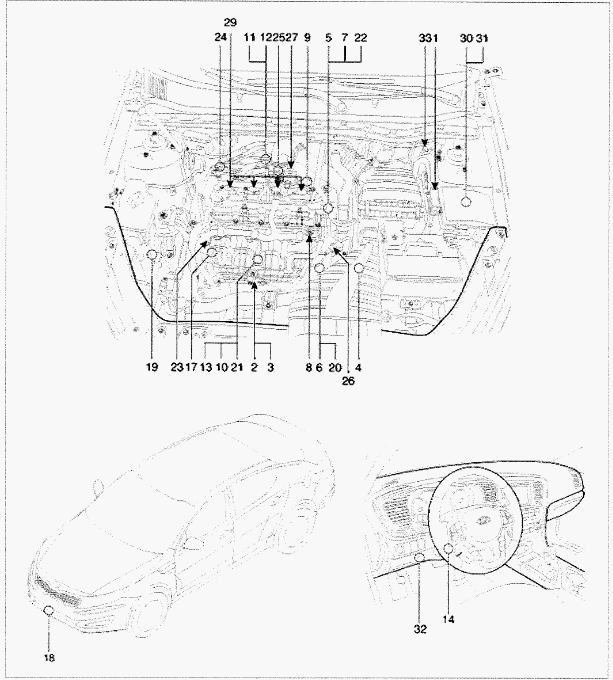

Fig 1: Engine Control System Components Location (1 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

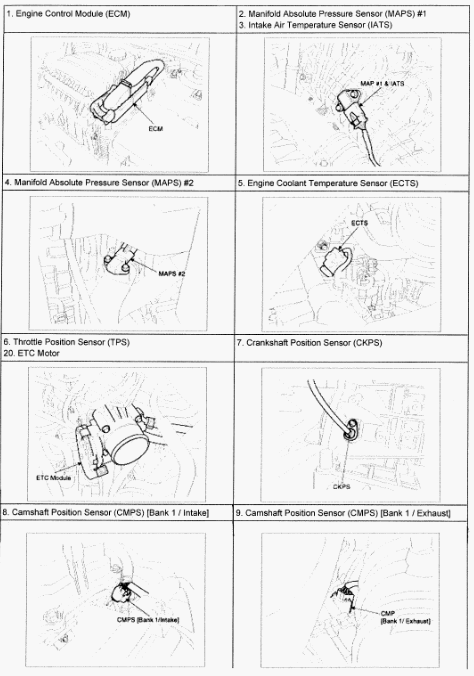

Fig 2: Engine Control System Components Location (2 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

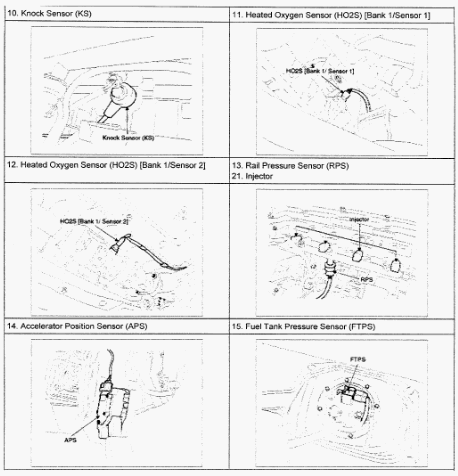

Fig 3: Engine Control System Components Location (3 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

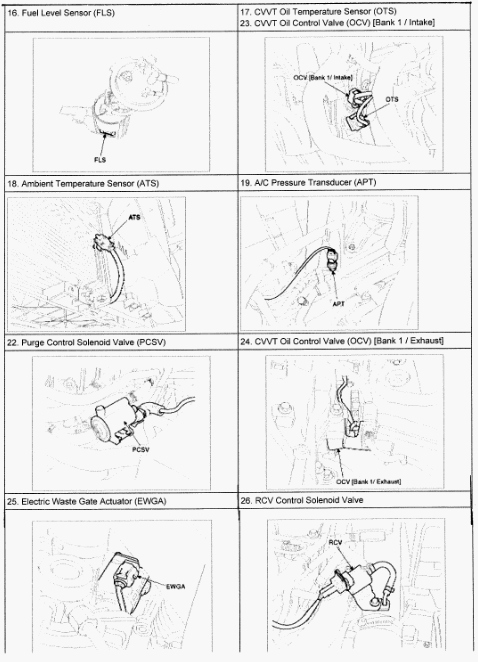

Fig 4: Engine Control System Components Location (4 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Engine Control System Components Location (5 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

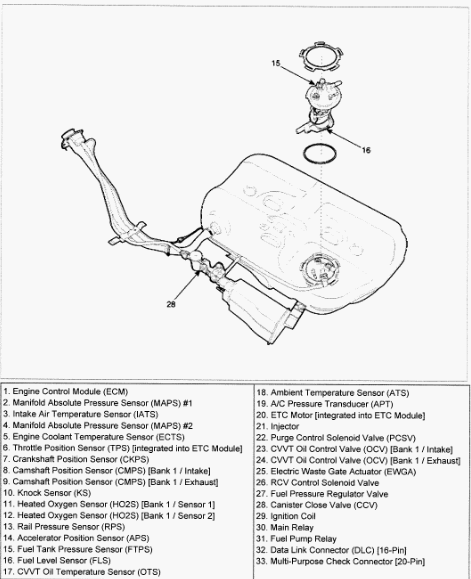

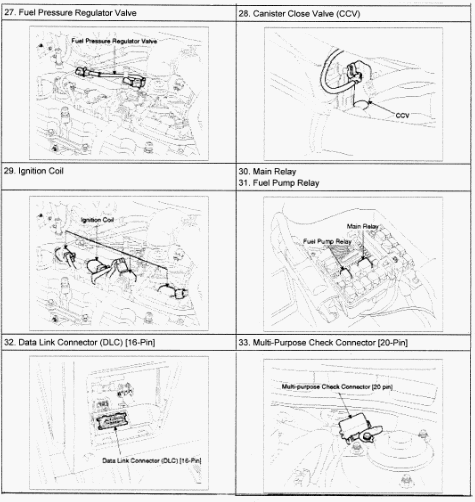

Fig 6: Engine Control System Components Location (6 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

(Type 2 for QF)

Fig 7: Engine Control System Components Location (1 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

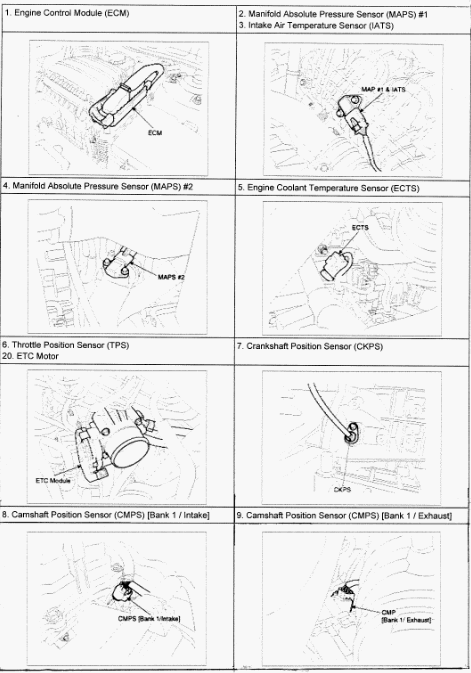

Fig 8: Engine Control System Components Location (2 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Engine Control System Components Location (3 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

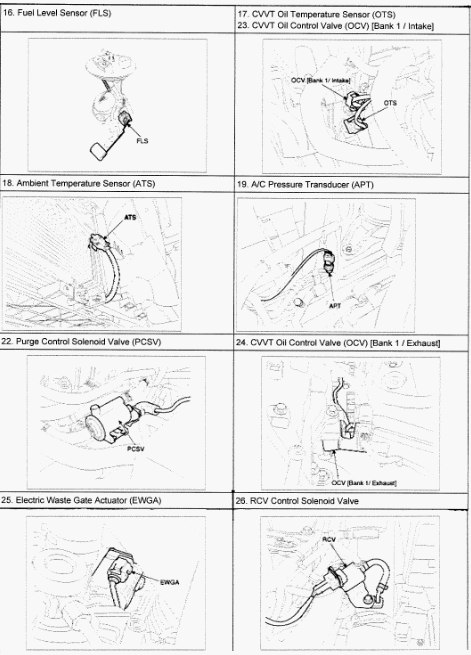

Fig 10: Engine Control System Components Location (4 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: Engine Control System Components Location (5 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

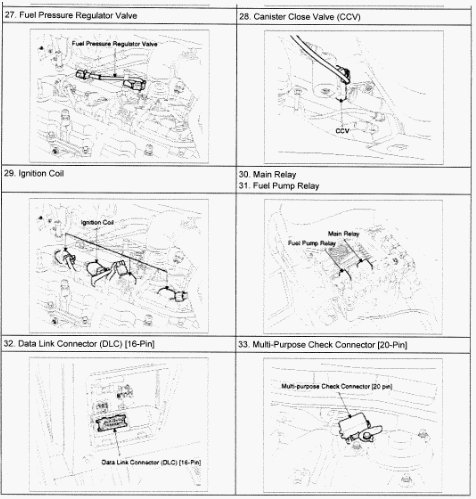

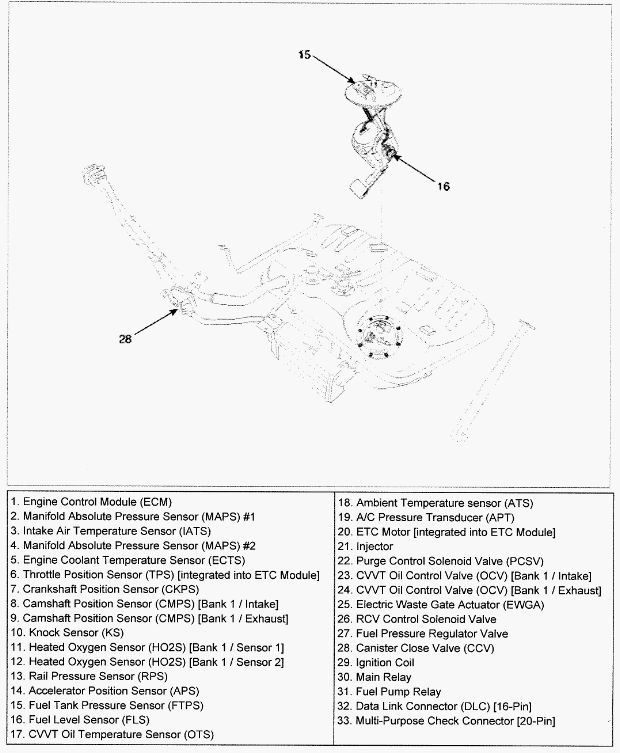

Fig 12: Engine Control System Components Location (6 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.
