Components And Components Location: Components

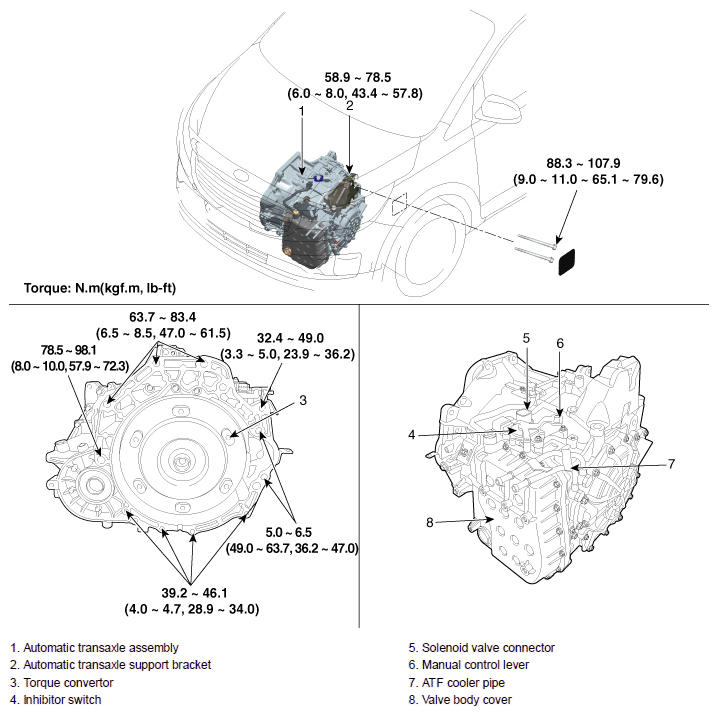

Fig 1: Automatic Transaxle System Components With Torque Specifications
G10649179Courtesy of KIA MOTORS AMERICA, INC.
