Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE: * The existing valve body cover gasket (A) must be replaced with new one. (Do not reuse it.)

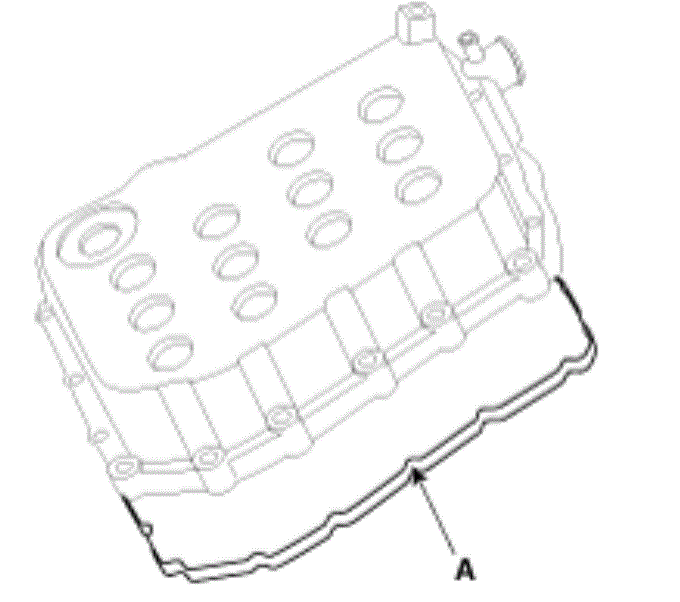

    Fig 1: Valve Body Cover Gasket (A)
    G00571226Courtesy of KIA MOTORS AMERICA, INC.

    * Perform the procedures below after replacing the solenoid valve.

  1. Refill the automatic transaxle with fluid.

    (Refer to Hydraulic System - "Fluid")FLUID

  2. Reset the automatic transaxle adaptive values using the GDS.

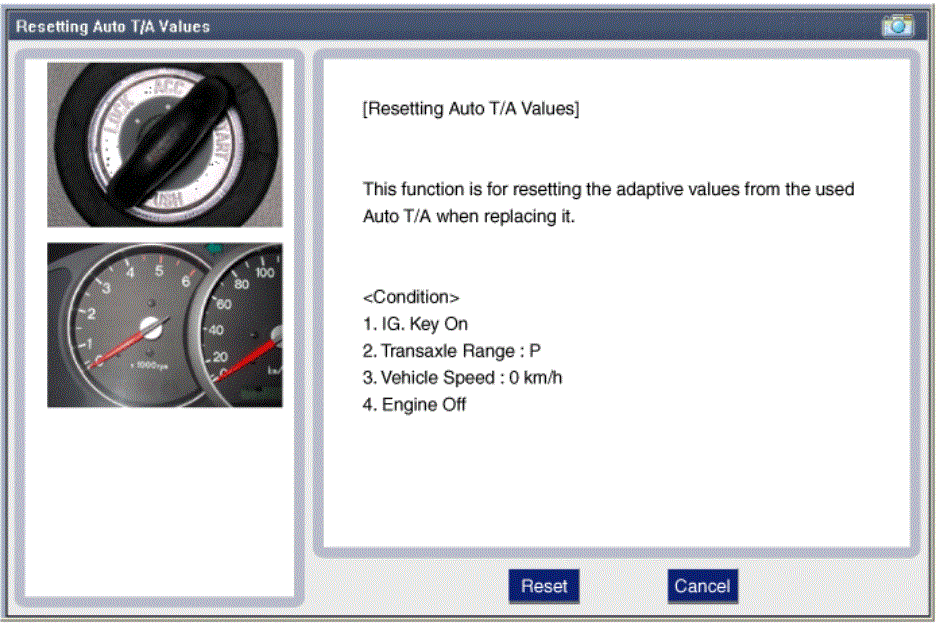

    Fig 2: Resetting Transaxle Adaptive Values
    G00571227Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the TCM adaptive values learning procedure.

    (Refer to Automatic Transaxle Control System - "Repair procedures") Repair Procedures

  4. Confirm that there is no fluid leakage on connections after repairing.
