Repair Procedures: Removal

* Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.

1. Remove the under cover.

   (Refer to Engine Mechanical System - "Engine Room Under Cover")ENGINE ROOM UNDER COVER

2. Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.

   Tightening torque:

   33.3 ~ 43.1 N.m (3.4 ~ 4.4 kgf.m, 24.6 ~ 31.8 lb-ft)

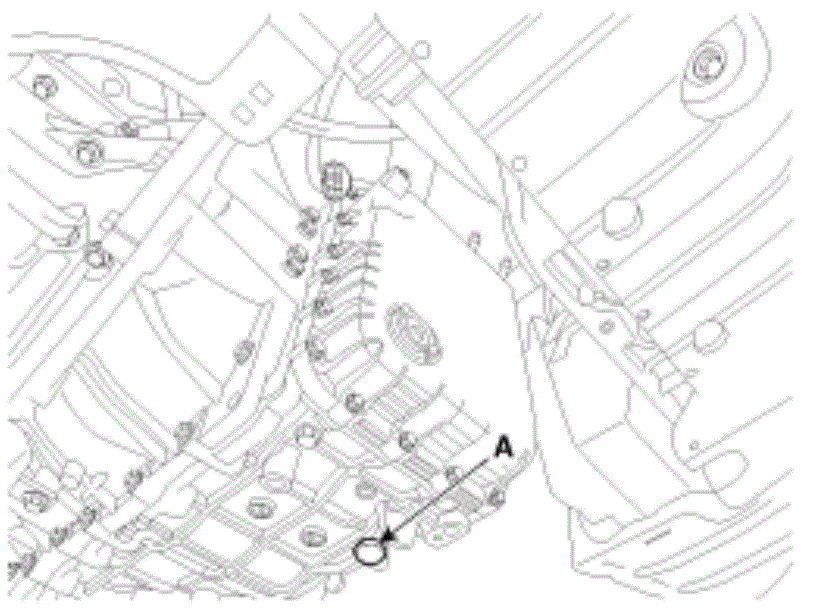

   Fig 1: ATF Drain Plug (A)

   Courtesy of KIA MOTORS AMERICA, INC.
   NOTE: * The existing ATF drain plug gasket must be replaced with a new one. (Do not reuse it.)

   * ATF can be reused. Collect it in a clean beaker.

3. Remove the battery and battery tray.

   (Refer to Engine Electrical System - "Battery")BATTERY

4. Remove the wiring bracket (A) and the air breather hose (B).

   Tightening torque:

   9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

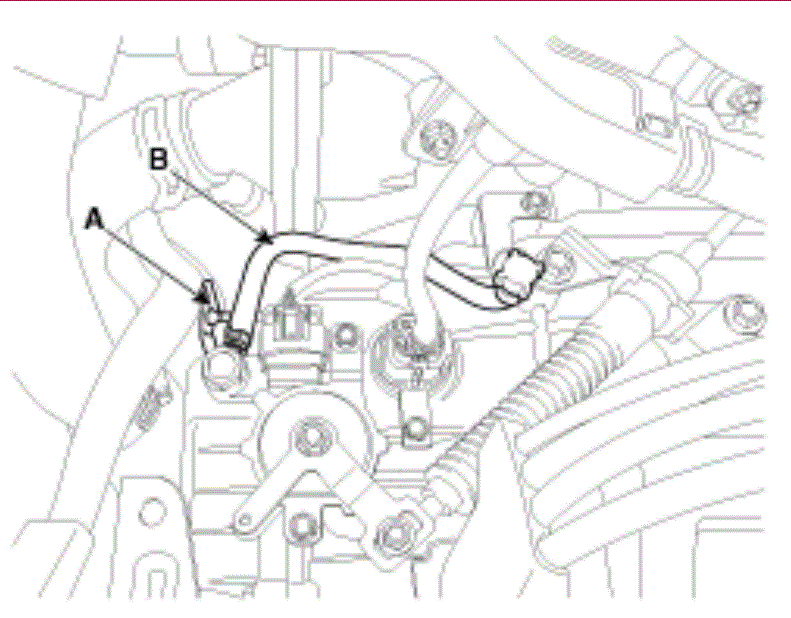

   Fig 2: Wiring Bracket (A) Breather Hose (B)

   Courtesy of KIA MOTORS AMERICA, INC.
5. Lift the vehicle after loosening valve body cover upper bolts.
6. Remove the valve body cover (A) by loosening bolts.

   Tightening torque:

   11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)

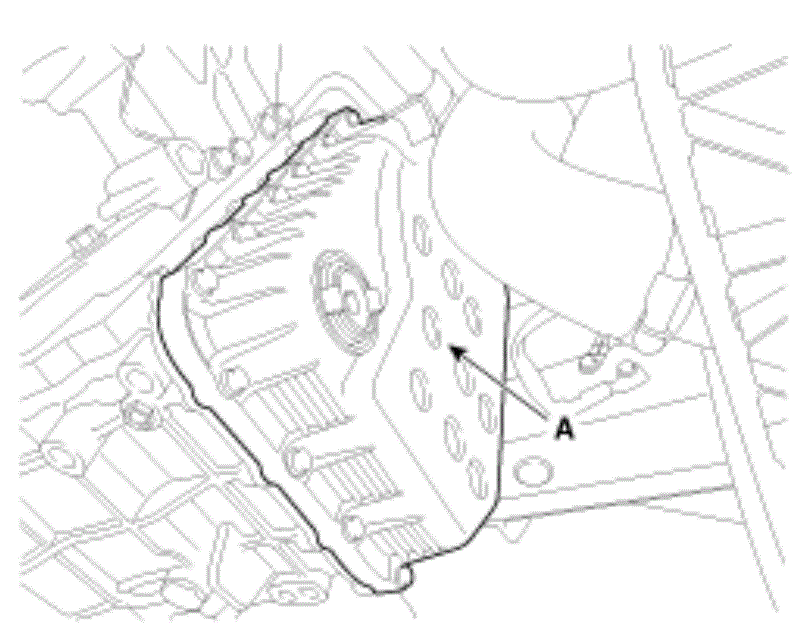

   Fig 3: Valve Body Cover (A)

   Courtesy of KIA MOTORS AMERICA, INC.
7. Remove the solenoid valve harness (A) and oil temperature sensor (B) after removing the bolts.

   Tightening torque:

   9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

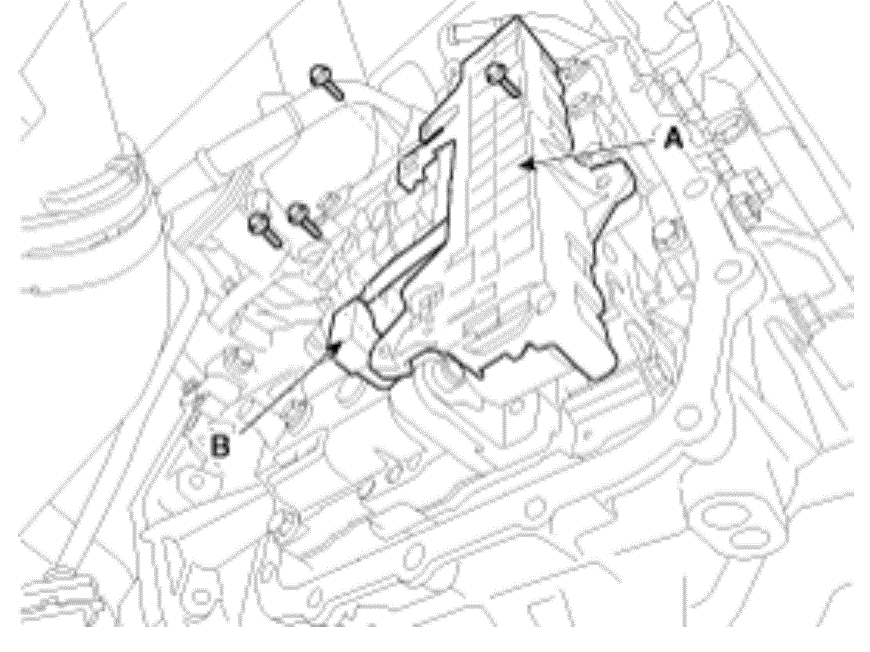

   Fig 4: Solenoid Valve Harness (A)And Oil Temperature Sensor (B)

   Courtesy of KIA MOTORS AMERICA, INC.
8. Remove solenoid valve support bracket (A).

   Tightening torque:

   9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

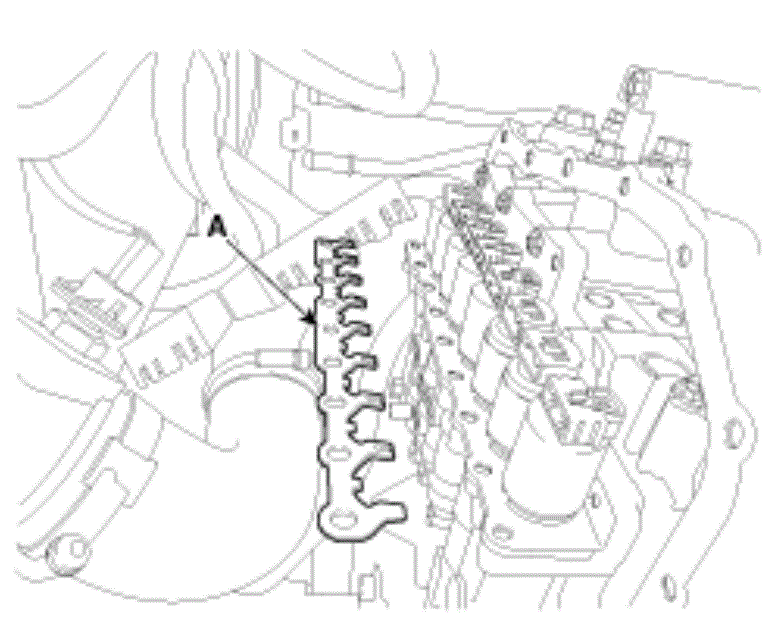

   Fig 5: Solenoid Valve Support Bracket (A)

   Courtesy of KIA MOTORS AMERICA, INC.
9. Remove the underdrive brake control solenoid valve (B) after loosening a vlave body mounting bolt (A).

   Tightening torque:

   9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

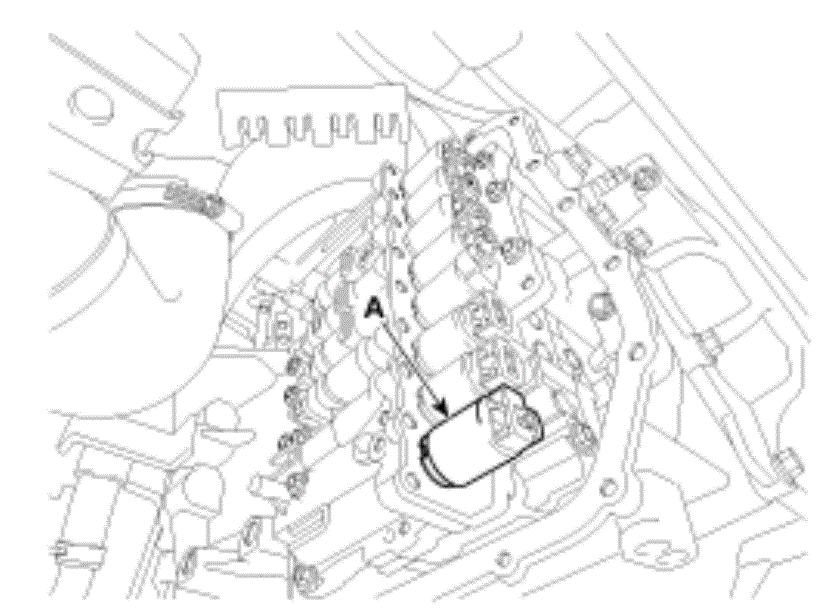

   Fig 6: Brake Control Solenoid Valve (B)

   Courtesy of KIA MOTORS AMERICA, INC.
