[Bank 1/Sensor 2]

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the console side cover (A).

Fig 1: Identifying Console Side Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove door scuff trim and cowl side trim.
(Refer to INTERIOR TRIM .
Disconnect the connector (A).

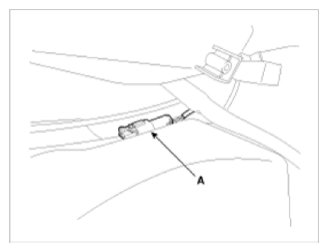

Fig 2: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.
Remove the center floor outer under cover nut (A) and then remove the sensor (B) with bracket.

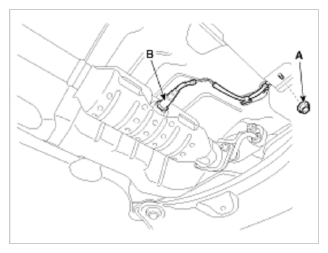

Fig 3: Identifying Center Floor Outer Under Cover Nut And Sensor
Courtesy of KIA MOTORS AMERICA, INC.
