Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the intake manifold.

    (Refer to INTAKE MANIFOLD .

  3. Disconnect the knock sensor connector (A).
  4. Remove the mounting bolt (B), and then remove the sensor from the cylinder block.

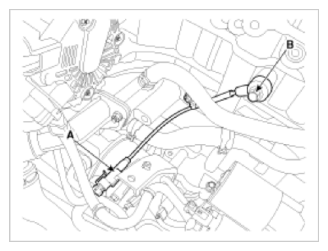

    Fig 1: Identifying Knock Sensor Connector And Mounting Bolt
    G09779273Courtesy of KIA MOTORS AMERICA, INC.
