Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the manifold absolute pressure sensor connector (A).
  3. Remove the mounting bolt (B), and then remove the sensor from the surge tank.

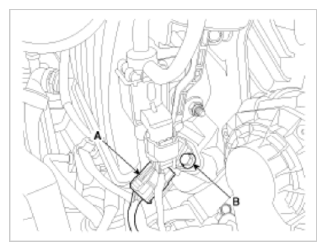

    Fig 1: Identifying Manifold Absolute Pressure Sensor Connector And Mounting Bolts
    G09779243Courtesy of KIA MOTORS AMERICA, INC.
