Repair procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Adding Automatic Transaxle Fluid (ATF).

      (Refer to "FLUID ")

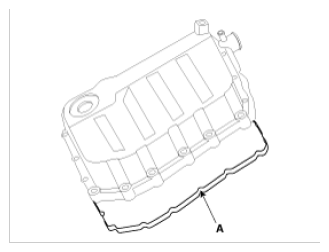

    • Use new valve body gasket (A).
      Fig 1: Valve Body Gasket
      G09779575Courtesy of KIA MOTORS AMERICA, INC.
