Repair procedures: Installation

Install in the reverse order of removal.
NOTE:
- Adding Automatic Transaxle Fluid (ATF).
  (Refer to "FLUID ")
- Perform Transaxle Control Module (TCM) learning after replacing the solenoid valve to prevent slow transaxle response, jerky acceleration and jerky startup.
  (Refer to "REPAIR PROCEDURES ")
- Replace the gasket (A) before reinstalling the valve body cover.

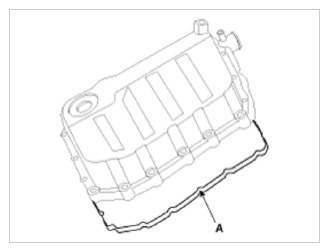

  Fig 1: Valve Body Cover Gasket
  Courtesy of KIA MOTORS AMERICA, INC.
