Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to "FRONT DOOR TRIM ")

  3. Remove the power window switch assembly (A) loosening the mounting screws (8EA).

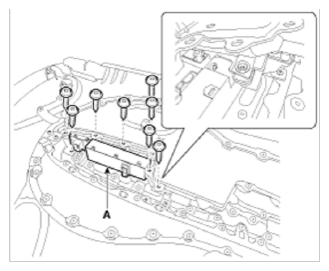

    Fig 1: Power Window Switch Assembly (1 Of 2)
    G09778396Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the power window switch assembly (A) after loosening the mounting screws.

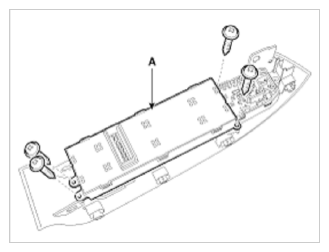

    Fig 2: Power Window Switch Assembly (2 Of 2)
    G09778397Courtesy of KIA MOTORS AMERICA, INC.
