Repair Procedures: Removal

CAUTION:

NOTE:

Remove both sides of the front pillar trim.
(Refer to "FRONT PILLAR TRIM ")
Remove both sides of the A pillar garnish.
(Refer to "A PILLAR GARNISH ")
Remove the cowl top cover.
(Refer to COWL TOP COVER )
Remove the inside rear view mirror assembly.
(Refer to "INSIDE REAR VIEW MIRROR ")
Remove the LDWS unit.
(Refer to

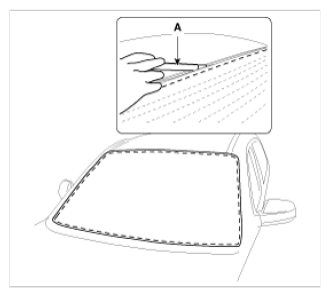

Cut out the adhesive using a cutter (A).
Information
- Please use a cutter with a blade length between 8-12 inches.

  Fig 1: Cutting Out Adhesive Using Cutter
  Courtesy of KIA MOTORS AMERICA, INC.

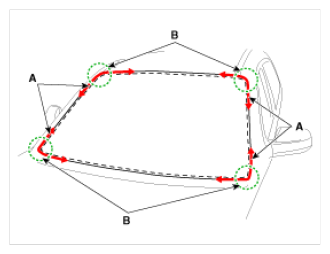

Cut off the sealant on the edge (B) while pulling the piano wire (A) left and right.

Fig 2: Cutting Off Sealant On Edge Using Piano Wire
Courtesy of KIA MOTORS AMERICA, INC.

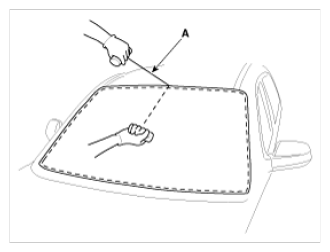

If a piano wire is visible inside the chassis, pull the piano wire (A) line inside.

Fig 3: Pulling Piano Wire Line Inside
Courtesy of KIA MOTORS AMERICA, INC.

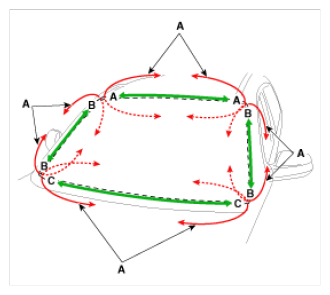

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Fig 4: Cutting Off Sealant Using Piano Wire
Courtesy of KIA MOTORS AMERICA, INC.

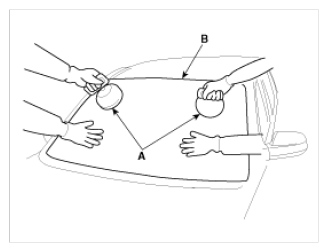

Remove the windshield glass (B) carefully using the glass holder (A).

Fig 5: Removing Windshield Glass Carefully Using Glass Holder
Courtesy of KIA MOTORS AMERICA, INC.
