Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Release the residual pressure in fuel line (Refer to the RELEASE RESIDUAL PRESSURE IN FUEL LINE ).
  3. Remove the Alternator.

    (Refer to ALTERNATOR )

  4. Disconnect the rail pressure sensor connector (A), and then remove the sensor (B) from the delivery pipe.

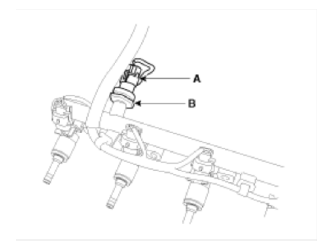

    Fig 1: Identifying Rail Pressure Sensor Connector And Sensor
    G09773001Courtesy of KIA MOTORS AMERICA, INC.
