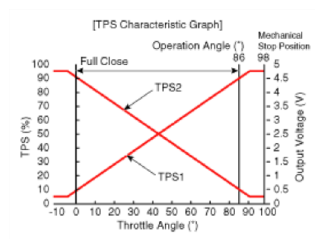

Engine Control/Fuel System - General Information - 1.6L: Specifications: [TPS2]

Item	Opening Percentage (%)	Output Voltage (V) [Vref = 5V]
C.T	87 ~ 93	4.35 ~ 4.65
W.O.T	6 ~ 11.4	0.3 ~ 0.57

Crankshaft Position Sensor (CKPS)

• Type: Magnetic field sensitive Type
• Specification

Item	Specification
Coil Resistance (Ω)	774 ~ 946 [20°C (68°F)]

Camshaft Position Sensor (CMPS)

• Type: Hall effect type

Knock Sensor (KS)

• Type: Piezo-electricity type
• Specification

Item	Specification
Capacitance (pF)	950 ~ 1, 350
Resistance (MΩ)	4.87

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]

• Type: Zirconia (ZrO2) [Linear] Type
• Specification

Item	Specification
Heater Resistance (Ω)	2.4 ~ 4.0 [20°C (69.8°F)]

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]

• Type: Zirconia (ZrO2) [Binary] Type
• Specification

A/F Ratio (λ)	Output Voltage (V)
RICH	0.6 ~ 1.0
LEAN	0 ~ 0.4

Item	Specification
Heater Resistance (Ω)	Approx. 9.0 [21°C (69.8°F)]

Rail Pressure Sensor (RPS)

• Type: Piezo-electricity type
• Specification

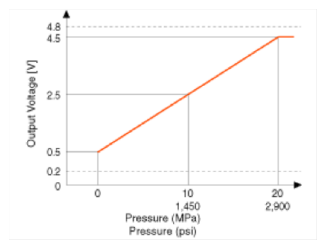

  Fig 2: Rail Pressure Sensor Output Voltage Graph

  Courtesy of KIA MOTORS AMERICA, INC.

Accelerator Position Sensor (APS)

• Type: Variable resistor type
• Specification

Accelerator Position	Output Voltage (V) [Vref = 5V]
	APS1	APS2
C.T	0.7 ~ 0.8	0.28 ~ 0.48
W.O.T	3.85 ~ 4.35	1.8 ~ 2.3

Fuel Tank Pressure Sensor (FTPS)

• Type: Piezo - Resistivity type
• Specification

Pressure [kPa (kgf/cm2 , in H2O)	Output Voltage (V)
-6.67 (-0.068, -26.8)	0.5
0	2.5
+6.67 (0.068, 26.8)	4.5
