Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.
  3. Disconnect the ignition coil connector (A).

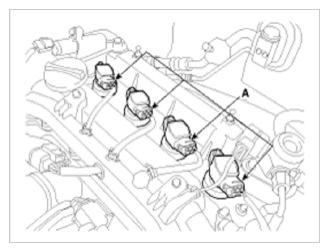

    Fig 1: Ignition Coil Connector
    G09777661Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

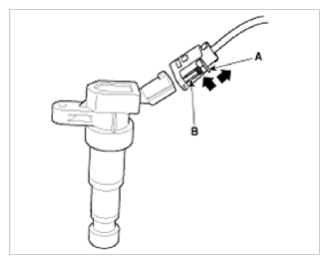

    Fig 2: Pushing Lock Pin & Push Clip
    G09777662Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the ignition coil (A).

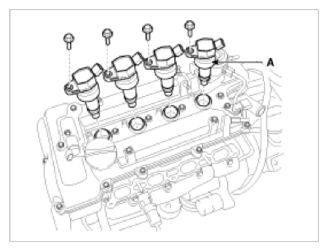

    Fig 3: Removing Ignition Coil
    G09777663Courtesy of KIA MOTORS AMERICA, INC.
