Components Location

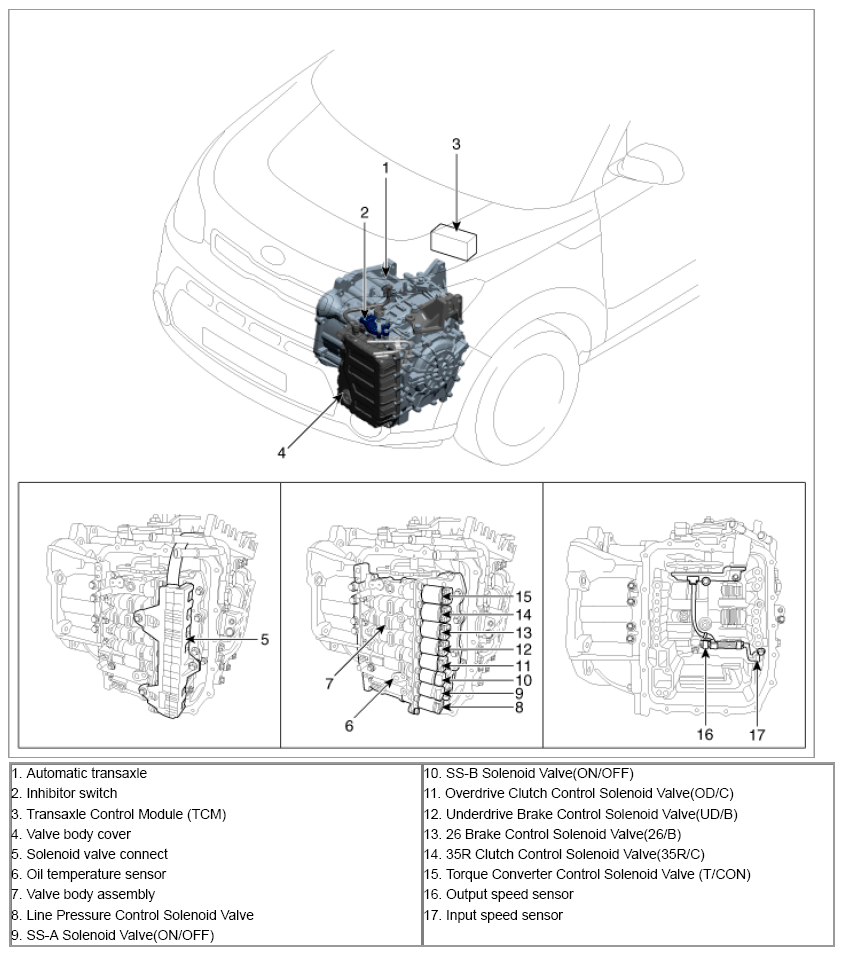

Fig 1: Automatic Transaxle Components Location
G09773203Courtesy of KIA MOTORS AMERICA, INC.

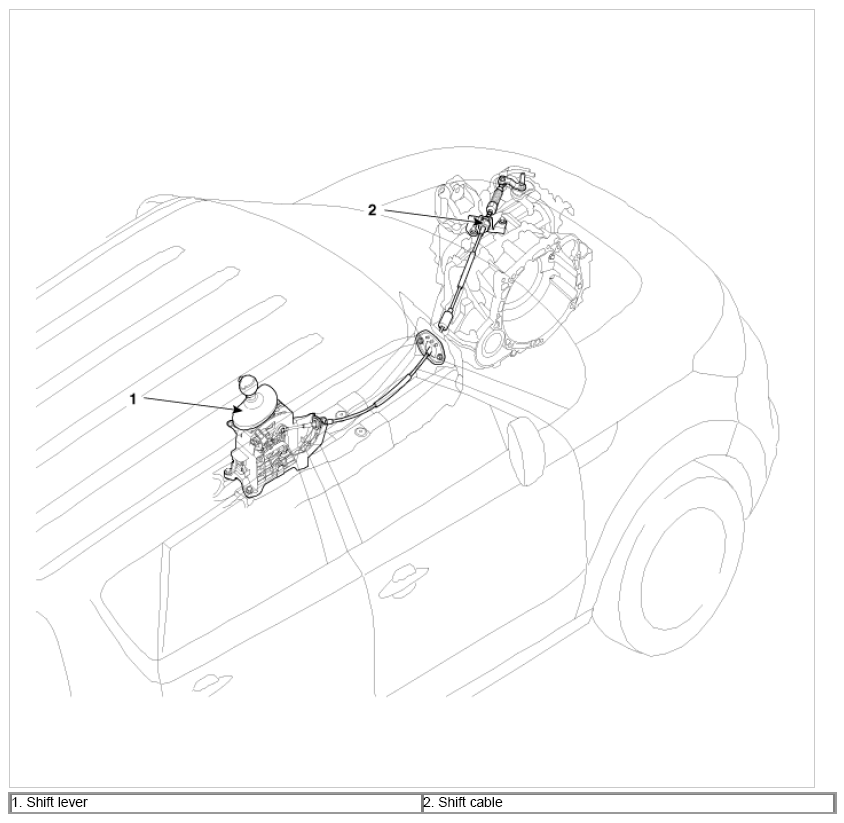

Fig 2: Shift Lever & Cable Components Location
G09773204Courtesy of KIA MOTORS AMERICA, INC.
