Repair Procedures: Removal

  1. Place the shift lever into the "N" position.
  2. Disconnect the battery negative (-) cable.
  3. Remove the air cleaner.

    (Refer to "AIR CLEANER ")

  4. Disconnect the inhibitor switch connector (A).
  5. Remove the shift cable mounting nut (B).

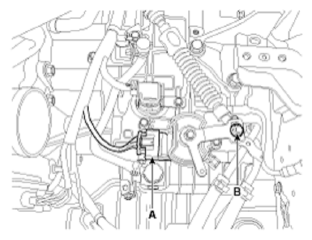

    Fig 1: Inhibitor Switch Connector & Shift Cable Mounting Nut
    G09773278Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the manual control lever (B) and the washer after removing a nut (A).

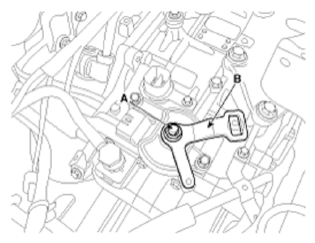

    Fig 2: Manual Control Lever & Mounting Nut
    G09773279Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the inhibitor switch (A) after removing the bolts (2ea).

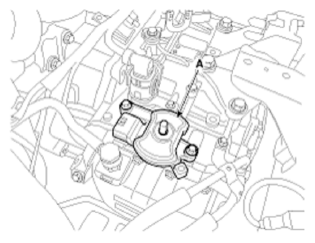

    Fig 3: Inhibitor Switch
    G09773280Courtesy of KIA MOTORS AMERICA, INC.
