Repair Procedures: Inspection

  1. Turn ignition switch OFF.
  2. Disconnect the solenoid valve connector (A).

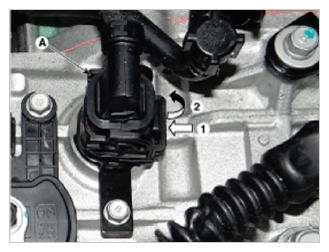

    Fig 1: Solenoid Valve Connector
    G09773250Courtesy of KIA MOTORS AMERICA, INC.
  3. Measure resistance between solenoid valve signal terminal and ground terminal.
  4. Check that the resistance is within the specification.
