Shift lock solenoid replacement

  1. Remove the floor console assembly.

    (Refer to "FLOOR CONSOLE ")

  2. Remove the shift lock solenoid (A) from the shift lever assembly.
    Fig 1: Removing Shift Lock Solenoid From Shift Lever Assembly
    G09773294Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the wiring (B) of shift lock solenoid from the main connector (A).

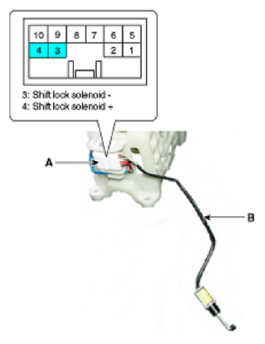

    Fig 2: Shift Lock Solenoid Wiring & Main Connector
    G09773295Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
