Components And Components Location: Components

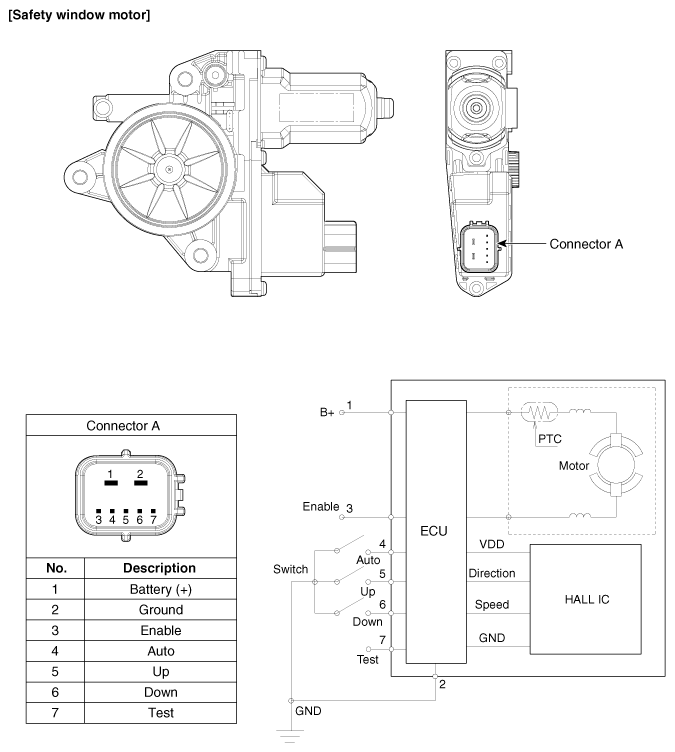

Fig 1: Power Window Motor Circuit Diagram
G10744703Courtesy of KIA MOTORS AMERICA, INC.

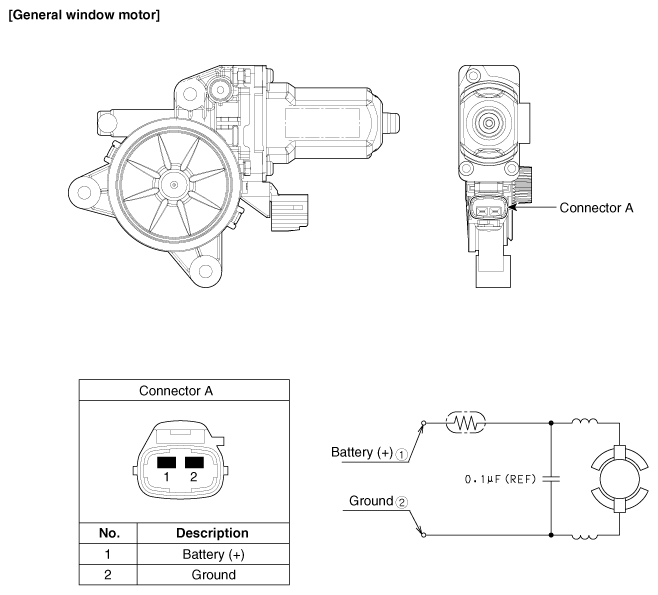

Fig 2: General Window Motor Circuit Diagram
G10744704Courtesy of KIA MOTORS AMERICA, INC.
