Charging System: Battery: Troubleshooting

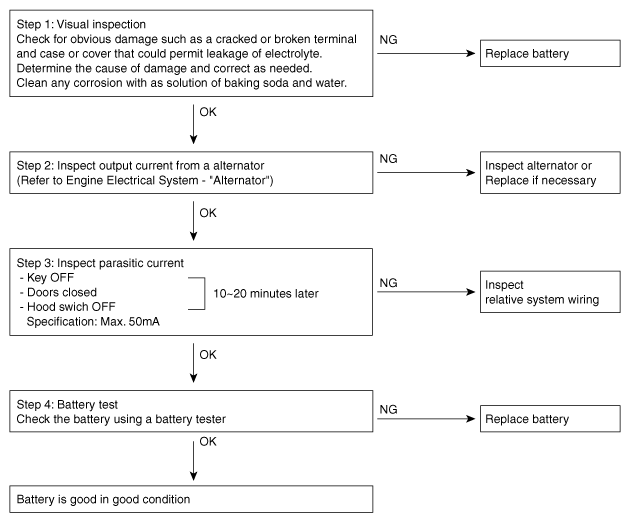

Fig 1: Battery Inspection Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
