Circuit Diagram

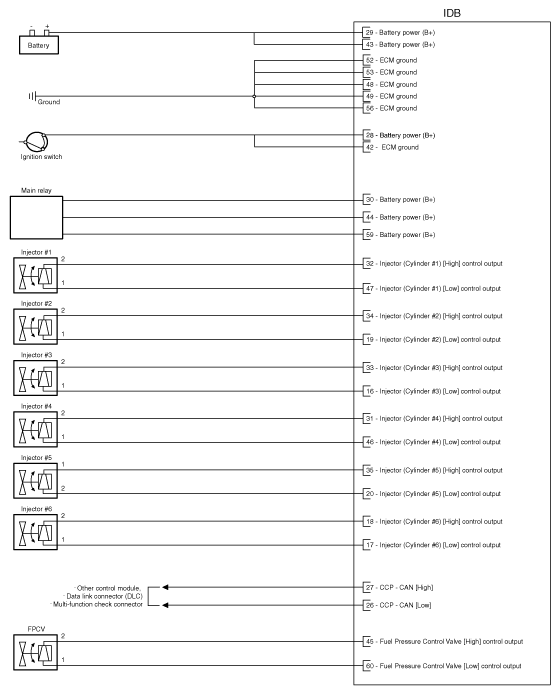

Fig 1: Injector Drive Box Circuit Diagram (1 Of 2)
G11784012Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Injector Drive Box Circuit Diagram (2 Of 2)
G11784013Courtesy of KIA MOTORS AMERICA, INC.
