Fuel Pump Assembly

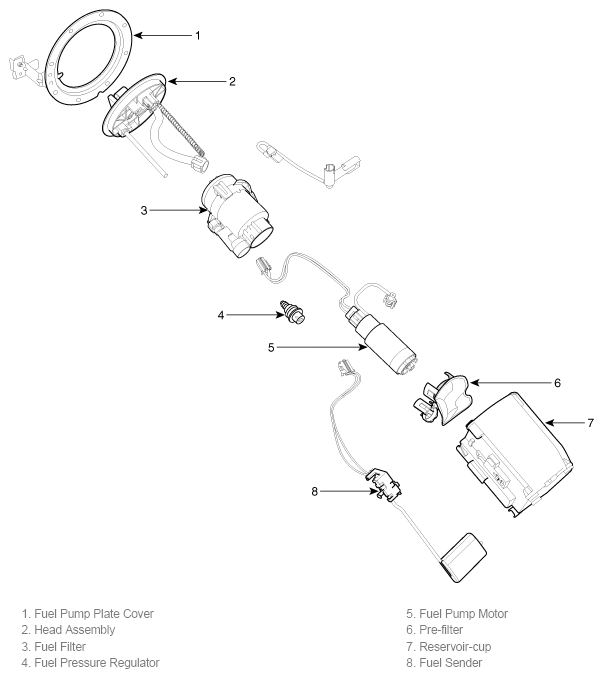

Fig 1: Fuel Pump Assembly Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
