Component Inspection

■ Check MAPS Performance

1. IG "OFF". Connect a GDS and oscilloscope.
2. Connect probe to MAPS and TPS to check signal waveform by using oscilloscope function.
3. ENG "ON" and monitor signal waveform during acceleration and deceleration.

   Specification:  Signal waveform will be displayed as follows.

   Pressure (kPa)	Voltage (V)
   20 kPa (2.9 psi)	0.79
   46.66 kPa (6.76 psi)	1.84
   101.32 kPa (14.69 psi)	4.0

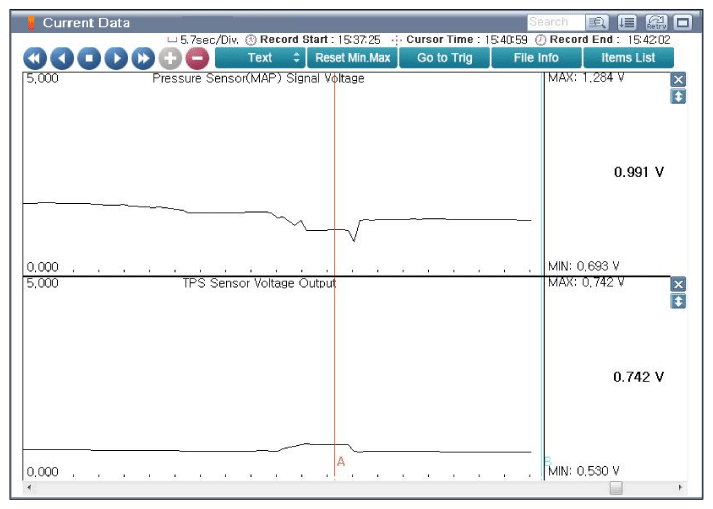

   Fig 1: Screen Display - Normal Graph Of MAPS & TPS During Acceleration And Deceleration

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is the relationship between the MAP and the TPS correct?

   YES

   • Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known - good MAPS and check for proper operation. If the problem is corrected, replace MAPS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
