Line Pressure Control Solenoid Valve
>>
Components and Components Location
>>
Component Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location

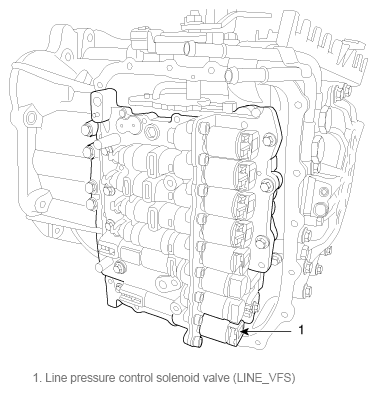

Fig 1: Line Pressure Control Solenoid Valve (Line VFS) Component Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
