Repair Procedures: Inspection

Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.

Fig 1: Removing Ignition Switch Connector And Key Warning Switch Connector From Steering Column
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals.
If continuity is not specified, replace the switch.

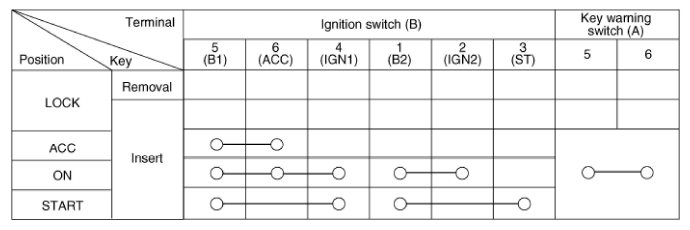

Fig 2: Key Warning Switch Continuity Reference Chart

Courtesy of KIA MOTORS AMERICA, INC.
