Power Window Main Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")
Disconnect the connector from the power window switch module.

Fig 1: Disconnect Power Window Main Switch Connector From Power Window Switch Module
Courtesy of KIA MOTORS AMERICA, INC.

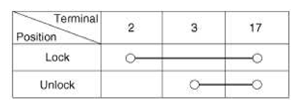

Check for continuity between the terminals in each switch position according to the table.
[Driver/Passenger Safety]

Fig 2: Power Window Main Switch Continuity Reference Chart - Driver/Passenger Safety (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Power Window Main Switch Continuity Reference Chart - Driver/Passenger Safety (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

[Driver Auto Down]

Fig 4: Power Window Main Switch Continuity Reference Chart - Driver Auto Down (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Power Window Main Switch Continuity Reference Chart - Driver Auto Down (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the power window switch(A) after loosening the screws.

Fig 6: Remove Power Window Switch

Courtesy of KIA MOTORS AMERICA, INC.
