Circuit Diagram

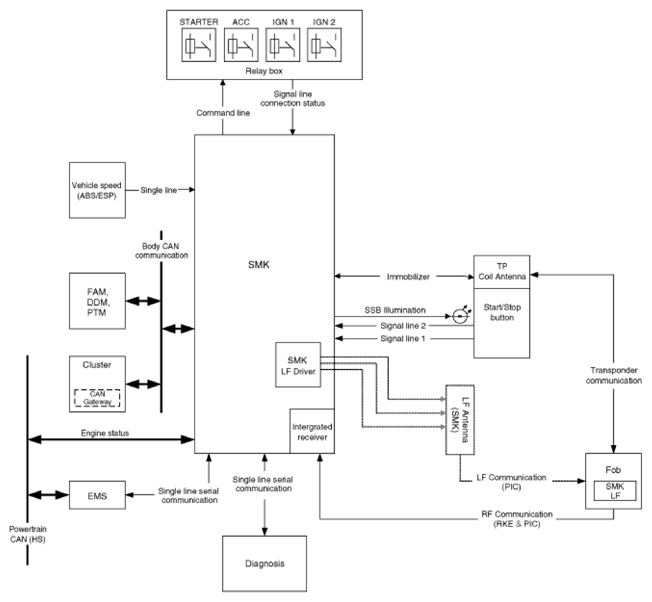

Fig 1: Button Engine Start System Schematic Diagrams
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
