Circuit Diagram

(M/T)

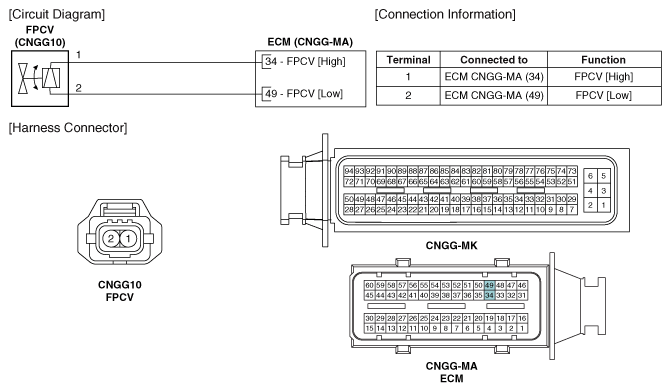

Fig 1: Fuel Pressure Control Valve Circuit Diagram (M/T)
G11797000Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

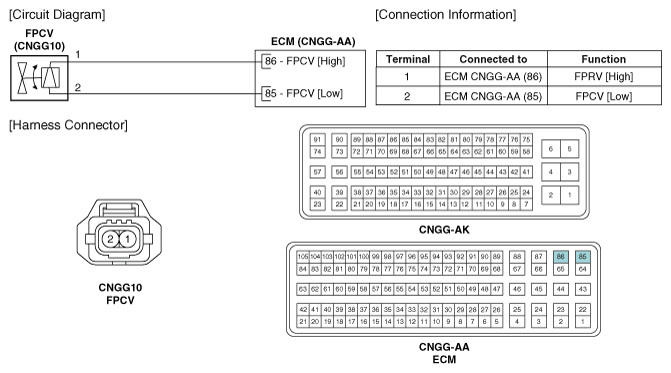

Fig 2: Fuel Pressure Control Valve Circuit Diagram (A/T)
G11797001Courtesy of KIA MOTORS AMERICA, INC.
