Circuit Diagram

(M/T)

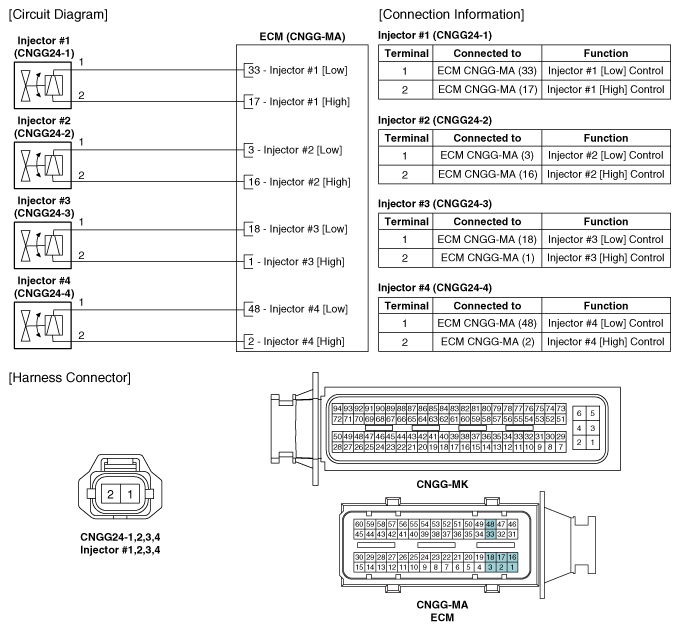

Fig 1: Injector Circuit Diagram (M/T)
G11796971Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

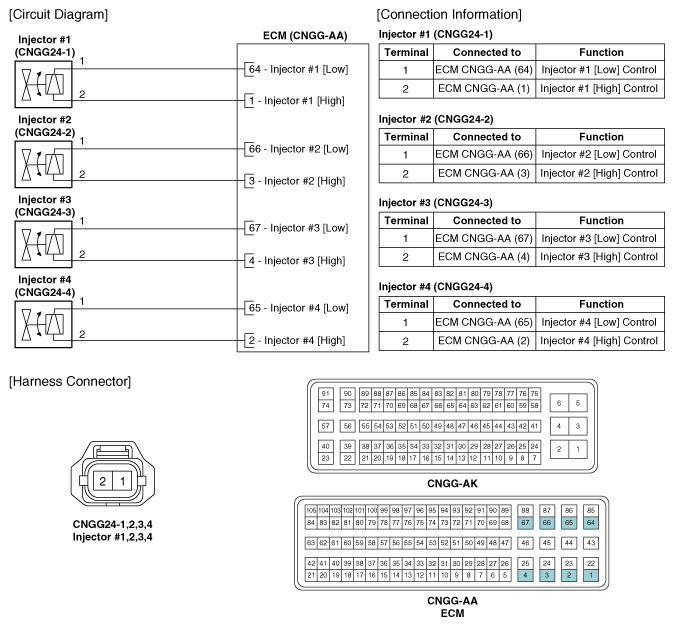

Fig 2: Injector Circuit Diagram (A/T)
G11796972Courtesy of KIA MOTORS AMERICA, INC.
