Circuit Diagram

(M/T)

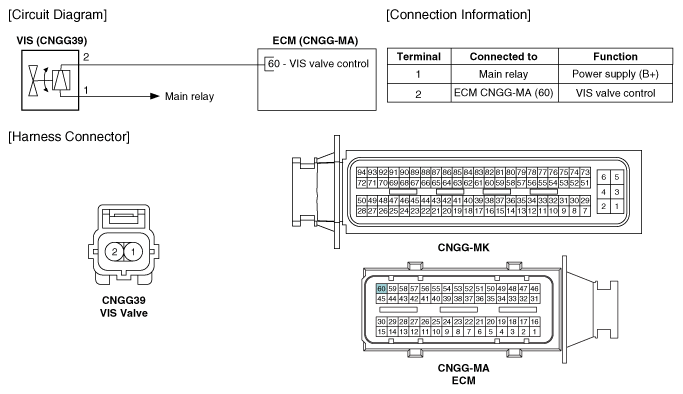

Fig 1: Variable Intake Solenoid Valve Circuit Diagram (M/T)
G11796995Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

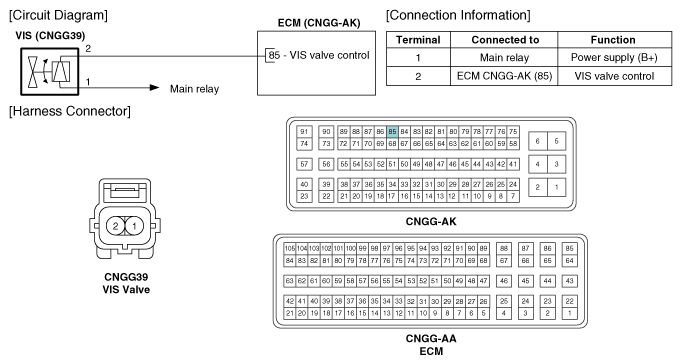

Fig 2: Variable Intake Solenoid Valve Circuit Diagram (A/T)
G11796996Courtesy of KIA MOTORS AMERICA, INC.
