Components Location

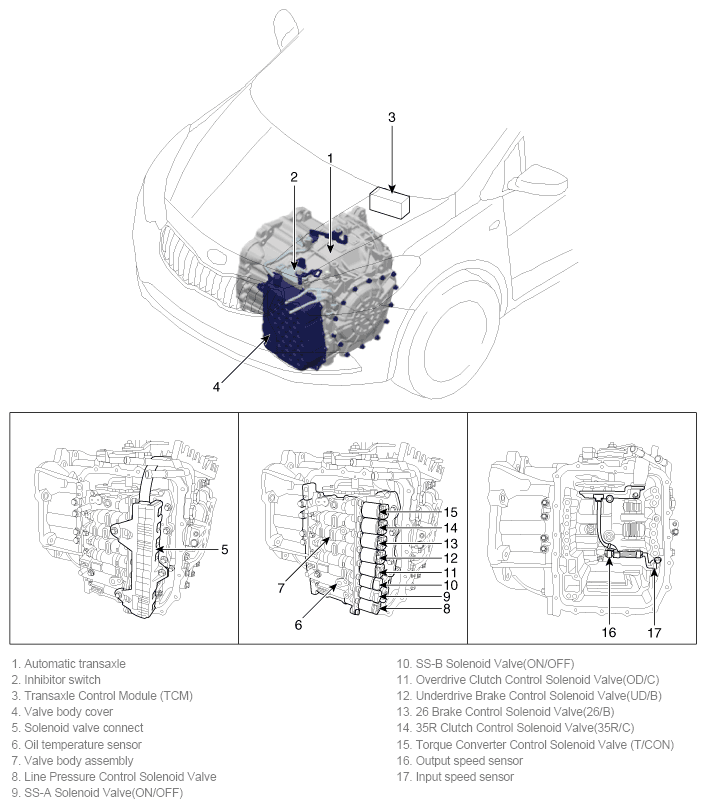

Fig 1: Locate Automatic Transaxle Control System Components
Courtesy of KIA MOTORS AMERICA, INC.

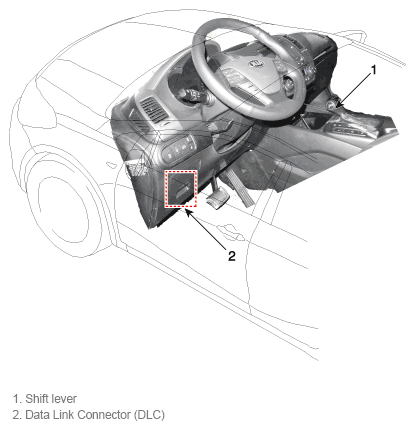

Fig 2: Locate Shift Lever And Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
