Signal Waveform

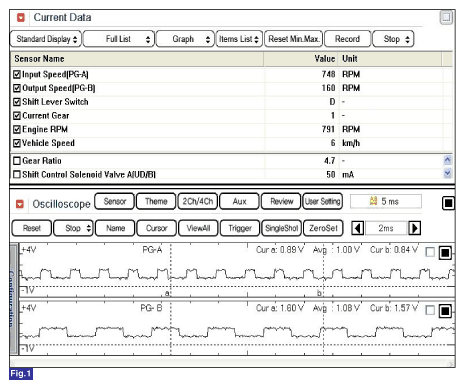

Fig 1: Input/Output Speed Sensor At Low Speed - Signal Waveform
G11797165Courtesy of KIA MOTORS AMERICA, INC.

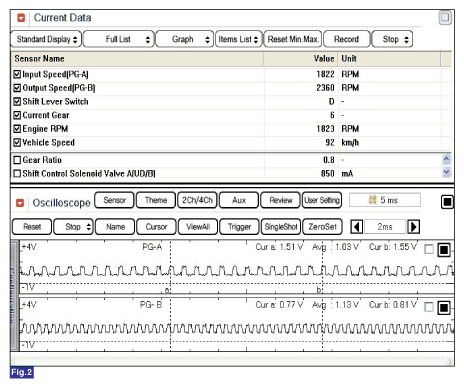

Fig 2: Input/Output Speed Sensor At High Speed - Signal Waveform
G11797166Courtesy of KIA MOTORS AMERICA, INC.
