Components And Components Location: Components

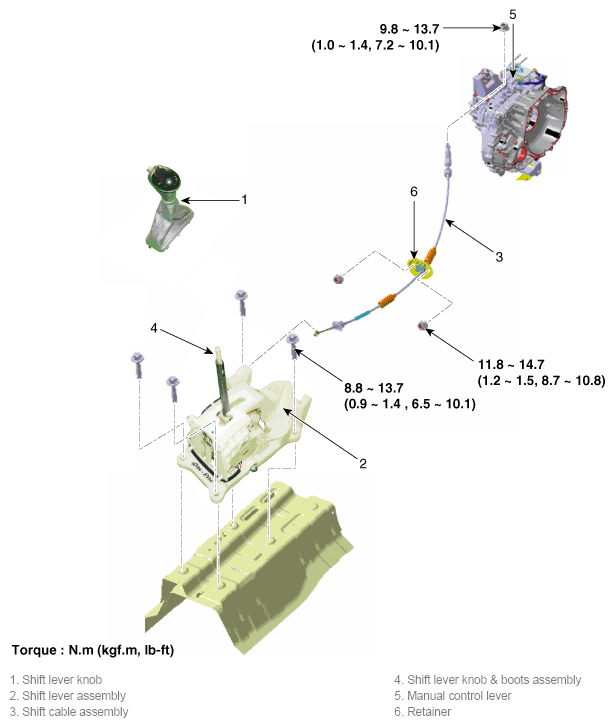

Fig 1: Locate Shift Cable Components With Torque Specifications
G11797284Courtesy of KIA MOTORS AMERICA, INC.
