Circuit Diagram

(M/T)

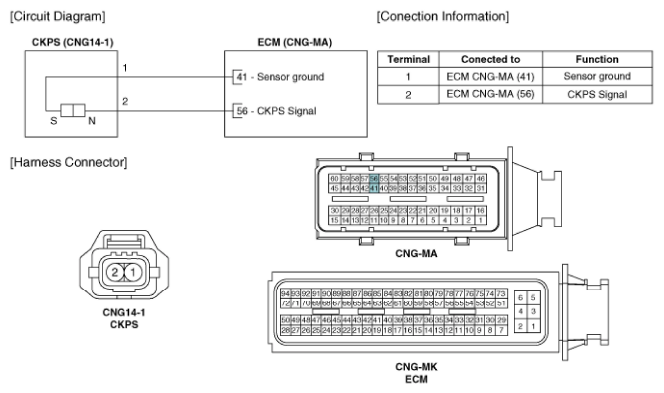

Fig 1: Crankshaft Position Sensor Circuit Diagram (M/T)
G11793837Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

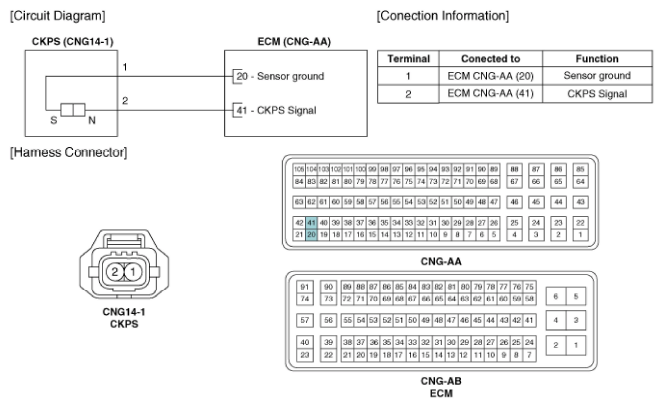

Fig 2: Crankshaft Position Sensor Circuit Diagram (A/T)
G11793838Courtesy of KIA MOTORS AMERICA, INC.
